Thin fronts - EXPANDO T technology
Easy assembly
Our new attachment system for thin fronts is based on EXPANDO T technology. Assembly is simple — drill, insert and secure the screws. With sufficient stability and strength, front materials of 8-14 mm may be used.
Assembly, adjustment and removal

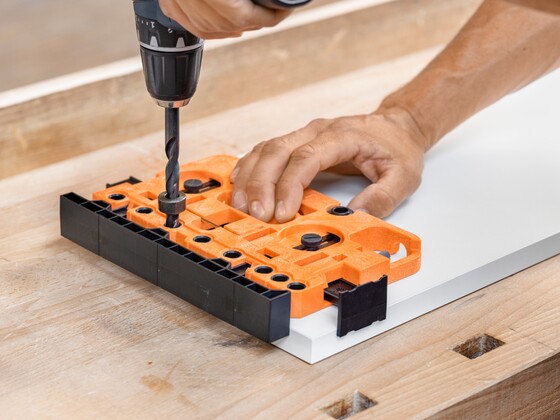

To assemble, first drill a 10 mm diameter hole that is just 6 mm in depth. Hinge cup drilling is no longer required for hinges. Attachment positions stay the same for lift and box systems.
No boring for hinge cups
Insert the dowels into the holes
Tighten screws and that’s it
Innovative attachment method
A steel pull-in anchor ensures a secure fit for harder materials, while plastic jaws secure the fit for softer materials.
Assembly instructions
Blum's thin front solution is suitable for attaching Blum hardware to thin front materials in cabinet manufacturing. With sufficient stability and strength, front materials of 8-14 mm may be used.
| Area of application and assembly recommendation | |
|---|---|
|
Materials tested by Blum
|
Minimum tightening torque (Nm)
|
|
Particleboard (transverse tensile strength > 0.4 N/mm²)
|
1.5
|
|
MDF (transverse tensile strength > 0.6 N/mm²)
|
1.5
|
|
HDF
|
2
|
|
HPL
|
2
|
|
Mineral composites
|
2
|
|
Granite stone
|
3
|
|
Quartz composite artificial stone
|
3
|
|
Ceramic panels
|
3
|
EXPANDO T assembly
Disclaimer of liability
Blum accepts no liability for the use of EXPANDO T in combination with materials not listed or hardware from other manufacturers. It is recommended that assembly be carried out by an experienced cabinet manufacturer.
EASY ASSEMBLY App
The EASY ASSEMBLY App provides step-by-step instructions and videos right in the palm of your hand—whether you're in the cabinet shop or on the jobsite. Download it in the Apple App Store or Google Play.
Assembly devices
Blum offers a wide range of boring and insertion machines, assembly devices and templates to make installing Blum products accurate, quick and easy.
Planning and ordering information
Would you like to find out more about EXPANDO T? This brochure provides all the information you need for ordering, planning, and assembly.
Your contact
If you want to know more about the EXPANDO T attachment method for thin fronts, drop us a line. We look forward to your call or email.
