TIP-ON BLUMOTION for MERIVOBOX
Well-thought-out opening system

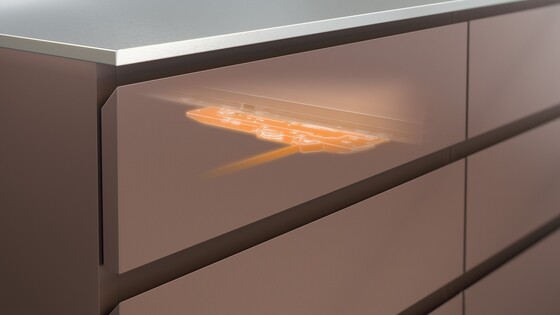

To incorporate handleless fronts in cabinets, simply combine MERIVOBOX with the TIP-ON BLUMOTION mechanical opening support system. This combination is possible thanks to the fully redesigned, innovative L-shaped cabinet profile of MERIVOBOX. Different TIP-ON BLUMOTION units are available to suit different nominal lengths and weight ranges. All other components are universal.
Cabinet profile
|
125
|
270 - 600
|
|
|
170
|
450 - 600
|
|
|
*Per ANSI/BHMA A156.9 Testing Standards |
||
| Static load rating* (Ib) | Nominal length (mm) | |
|---|---|---|
|
125
|
270 - 600
|
|
|
170
|
450 - 600
|
|
|
*Per ANSI/BHMA A156.9 Testing Standards |
||

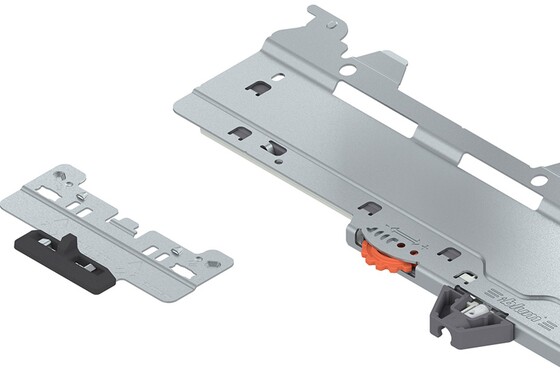

TIP-ON BLUMOTION units and triggers
| Nominal length | Weight range | Unit | Color coding system |
|---|---|---|---|
|
270-300 mm
|
≤ 10 kg
>10-20 kg |
S0
S1 |
White
Light gray |
|
350-650 mm
|
≤ 20 kg
15-40 kg |
L1
L3 |
Light gray
Dust gray |
|
450-600 mm
|
35-70 kg
|
L5
|
Black
|
Selection support
Our Product Configurator will help you select the right TIP-ON BLUMOTION unit to achieve the best results.
Synchronization
We recommend using the synchronization feature to expand the trigger range and achieve top quality performance.

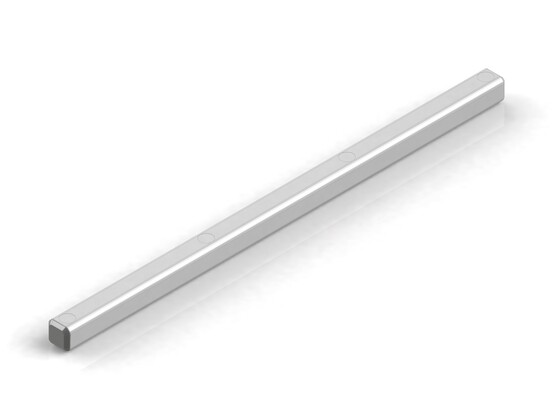

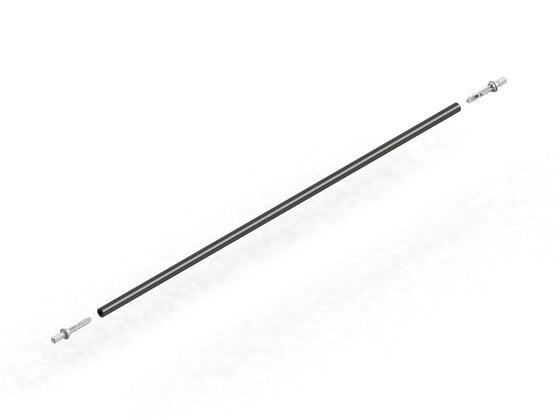

Synchronization rod with adapters for internal cabinet widths of ≥ 294 mm
One-piece synchronization can be cut to size for internal cabinet widths of 238 – 294 mm
Applications
