TIP-ON BLUMOTION for LEGRABOX
Combine LEGRABOX with TIP-ON BLUMOTION
LEGRABOX cabinet profiles have been designed to support TIP-ON BLUMOTION's mechanical opening support system. Different runner lengths and weight ranges can be used with different TIP-ON BLUMOTION units.
Cabinet profile
|
125
|
270 - 550
|
|
|
170
|
450 - 650
|
|
|
*Per ANSI/BHMA A156.9 Testing Standards |
||
| Static load rating* (Ib) | Nominal length (mm) | |
|---|---|---|
|
125
|
270 - 550
|
|
|
170
|
450 - 650
|
|
|
*Per ANSI/BHMA A156.9 Testing Standards |
||

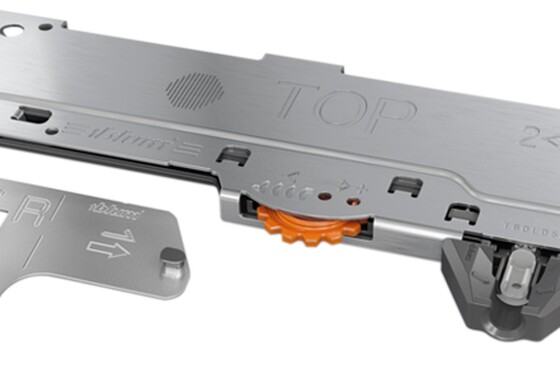

TIP-ON BLUMOTION units and triggers
| Nominal length | Weight range | Unit | Color coding system |
|---|---|---|---|
|
270 mm
|
≤ 44 lb
|
S1
|
Light gray
|
|
350-650 mm
|
≤ 44 lb
44-88 lb 88-155 lb |
L1
L3 L5 |
Light gray
Dust gray Black |
Selection support
Our Product Configurator will help you select the right TIP-ON BLUMOTION unit to achieve the best results.
Synchronization
We recommend using the synchronization feature to ensure top quality performance.
The synchronization rod is used for opening widths of 294 mm (11-9/16") to 1365 mm (53-3/4").
The synchronization rod for narrow applications works with opening widths of 261 mm (10-9/32") to 285 mm (11-7/32").
