TIP-ON BLUMOTION for LEGRABOX

Easy manufacturing and assembly

TIP-ON BLUMOTION can easily be added to a LEGRABOX drawer. Use Blum’s templates to make manufacturing and assembly easy.

Manufacturing and assembly

<no-break>TIP-ON BLUMOTION</no-break> de Blum pour tiroir
Cabinets and drawers

TIP-ON BLUMOTION can be added to LEGRABOX drawers without modifying the cabinet or drawer fronts.

TOB0121_MO_FOT_FO_BAU_SALL_AMC_V1

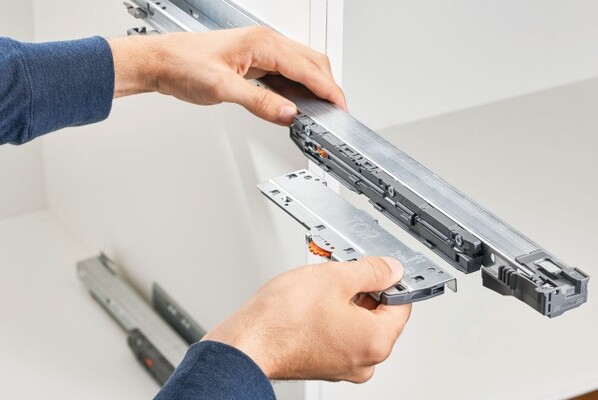

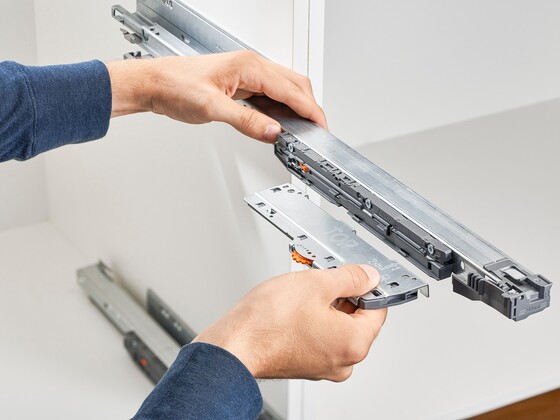

Simple, tool-free assembly

The TIP-ON BLUMOTION unit can be attached without tools, as can all other components.

TOB0119_MO_FOT_FO_BAU_SALL_AMC_V1

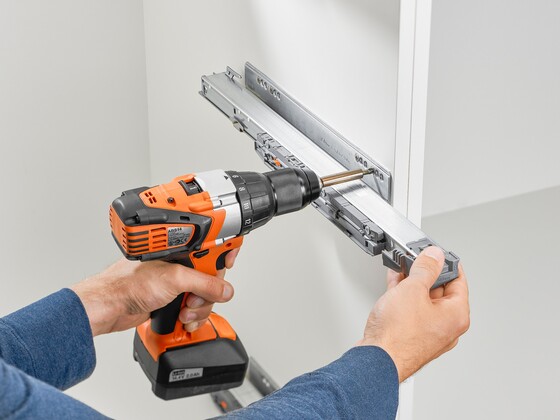

Same boring pattern

For TIP-ON BLUMOTION, you can use the same boring pattern that you would normally use for LEGRABOX.

TOB0040_MO_FOT_FO_BAU_#SALL_#APR6I_#V1

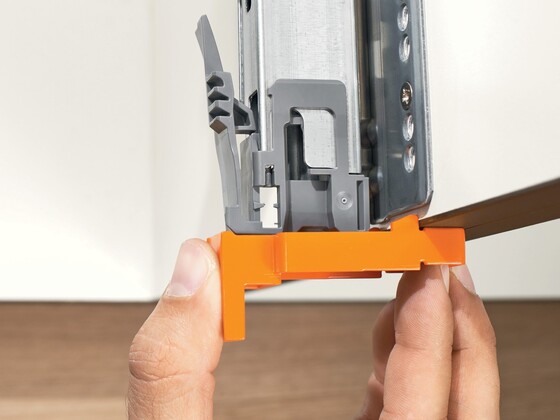

Precise front gap alignment

Use the front gap template to adjust the front gap to 2.5 mm. It’s precise and easy.

Synchronization

Two synchronization options are available for different internal cabinet widths. Both can be mounted without tools.

TOB0035_MO_FOT_FO_BAU_#SALL_#APR6I_#V1
Opening width ≥ 294 mm

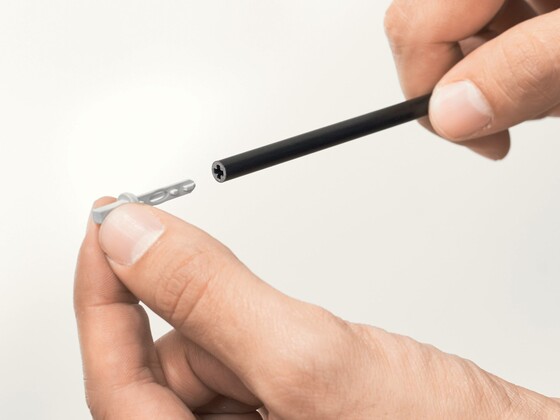

TIP-ON BLUMOTION units used in cabinet widths of 294 mm use a synchronization rod and two adapters.

TOB0095_DT_FRD_FO_BAU_#SALL_#APR6I_#V1
Opening widths of 261 to 285 mm

For narrow applications, use the one-piece synchronization rod.

TOB0123_MO_FOT_FO_BAU_SALL_AMC_V1

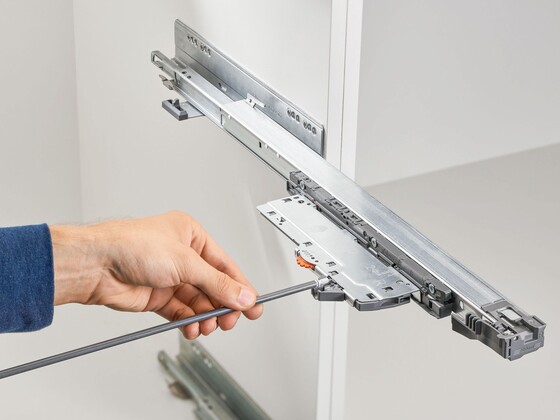

Tool-free assembly

The synchronization rod is clipped into the TIP-ON BLUMOTION unit without tools.

Assembly instructions

TIP-ON BLUMOTION for TANDEMBOX

PDF | 3 MB | 11-26-2020

TIP-ON BLUMOTION for TANDEMBOX

PDF | 3 MB | 11-26-2020

Videos

<no-break>TIP-ON BLUMOTION</no-break> for <no-break>LEGRABOX</no-break> and MOVENTO
TIP-ON BLUMOTION for LEGRABOX and MOVENTO

This video shows how to assemble, synchronize and adjust TIP-ON BLUMOTION for LEGRABOX.

<no-break>TIP-ON BLUMOTION</no-break> for <no-break>LEGRABOX</no-break>: Synchronization Rod
TIP-ON BLUMOTION for LEGRABOX: Synchronization Rod

This video shows how to properly open and close the LEGRABOX drawer profiles while using the synchronization rod.

<no-break>TIP-ON BLUMOTION</no-break> for <no-break>LEGRABOX</no-break>: Utilizing the Front Gap Template
TIP-ON BLUMOTION for LEGRABOX: Utilizing the Front Gap Template

This video shows how to use the front gap template with TIP-ON BLUMOTION for LEGRABOX.

<no-break>TIP-ON BLUMOTION</no-break> Installer Guide Overview
TIP-ON BLUMOTION Installer Guide Overview

This video assists in the installation of cabinetry that has TIP-ON BLUMOTION installed.

<no-break>TIP-ON BLUMOTION</no-break> Troubleshooting
TIP-ON BLUMOTION Troubleshooting

This video shows trouble shooting tips for installing TIP-ON BLUMOTION.

Assembly devices

Blum offers a wide range of boring and insertion machines, assembly aids, and templates to make installing Blum products accurate, quick, and easy.

 Go to Assembly Device Selector
