SERVO-DRIVE for drawers
Easy assembly and installation
SERVO-DRIVE is easy to install without any electrical knowledge and mostly without tools.
Assembly, adjustment and removal
SERVO-DRIVE: Mounting the bracket profile with drive units
Screw in the profile adapter set and then snap in the vertical aluminum profile.
SERVO-DRIVE: Mounting the drive units
Position the drive unit(s) and lock into place.
Attach the special SERVO-DRIVE distance bumpers to ensure a trigger path of at least 3 mm.
Place the power supply into its wall mount bracket and plug in.
Assembly instructions
SERVO-DRIVE Installation instructions
SERVO-DRIVE User manual
PDF | 152 KB | 02-06-2024
SERVO-DRIVE Waste/recycle set
PDF | 4 MB | 06-26-2024
SERVO-DRIVE Waste/recycle set template for TANDEM and MOVENTO
PDF | 1 MB | 06-26-2024
SERVO-DRIVE Waste/recycle set template for TANDEMBOX and LEGRABOX
PDF | 868 KB | 06-26-2024
Troubleshooting guide
Having trouble installing or operating SERVO-DRIVE? Find possible causes and solutions here:
EASY ASSEMBLY App
The EASY ASSEMBLY App provides step-by-step instructions and videos right in the palm of your hand—whether you're in the cabinet shop or on the jobsite. Download it in the Apple App Store or Google Play.

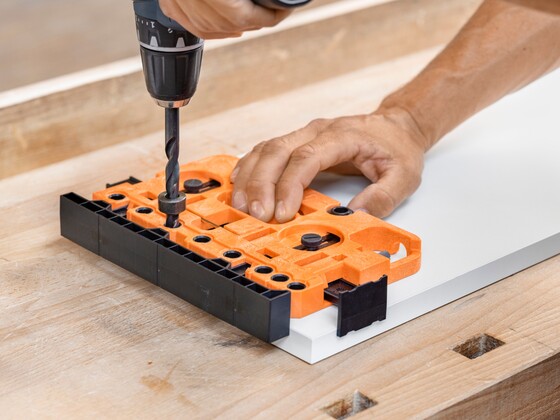

Assembly devices
Blum offers a wide range of boring and insertion machines, assembly devices and templates to make installing Blum products accurate, quick and easy.
