CLIP top BLUMOTION
Easy assembly
Features, like INSERTA and the CLIP attachment mechanism, make attaching the hinge to the door and mounting plate easy and tool-free. CLIP top BLUMOTION hinges also use the same boring pattern as CLIP top hinges (however, the boring depth has changed to 13 mm).
Assembly, adjustment and removal

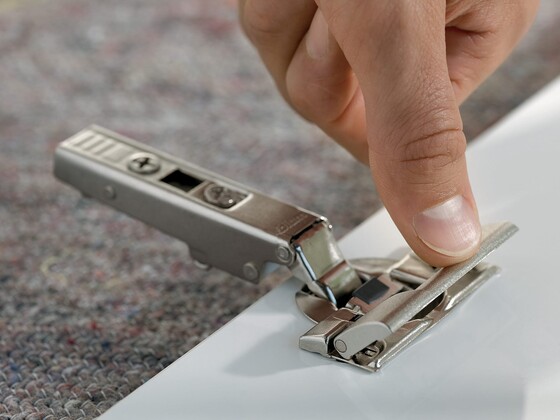

Tool-free hinge attachment
With INSERTA, hinges can be quickly snapped into place.

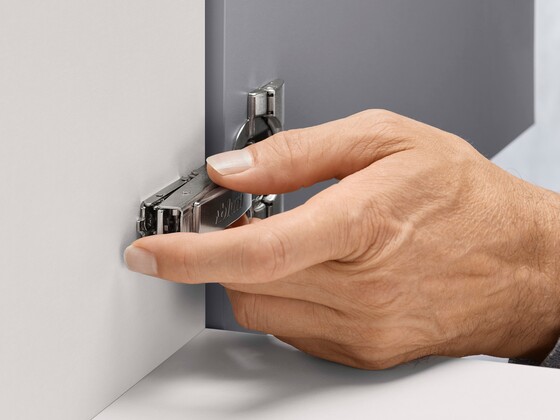

Tool-free door attachment
Blum’s tried and tested CLIP mechanism makes attaching the door to the cabinet tool-free, quick, and easy.

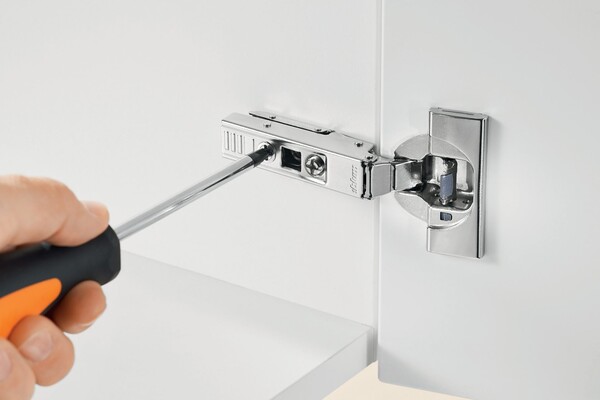

Three-dimensional adjustment
CLIP top BLUMOTION triple advantage: side, height, and variable depth adjustment, with our spiral screw. Several mounting plates also have cam height adjustment.
Assembly instructions
CLIP top BLUMOTION
CLIP top BLUMOTION - Angle restriction clip
PDF | 210 KB | 02-06-2024
CLIP top BLUMOTION 155° Hinge
PDF | 698 KB | 02-06-2024
CLIP top BLUMOTION for thin doors
PDF | 1006 KB | 07-13-2023
CLIP top BLUMOTION hinge cup cover cap
PDF | 130 KB | 06-15-2023
CLIP top BLUMOTION, CLIP top and CLIP
PDF | 5 MB | 11-19-2024
CLIP top Narrow Aluminum Hinges
PDF | 357 KB | 05-13-2025
EASY ASSEMBLY App
The EASY ASSEMBLY App provides step-by-step instructions and videos right in the palm of your hand—whether you're in the cabinet shop or on the jobsite. Download it in the Apple App Store or Google Play.

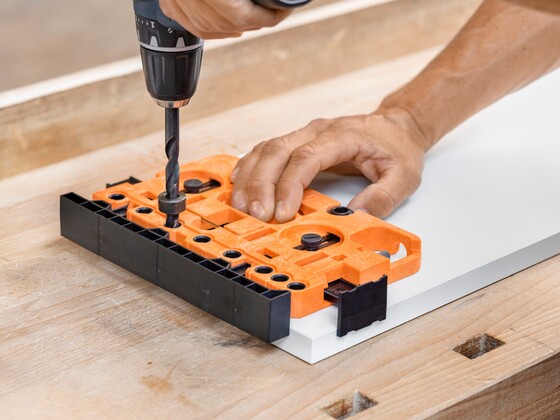

Assembly devices
Blum offers a wide range of boring and insertion machines, assembly devices and templates to make installing Blum products accurate, quick and easy.
