REVEGO

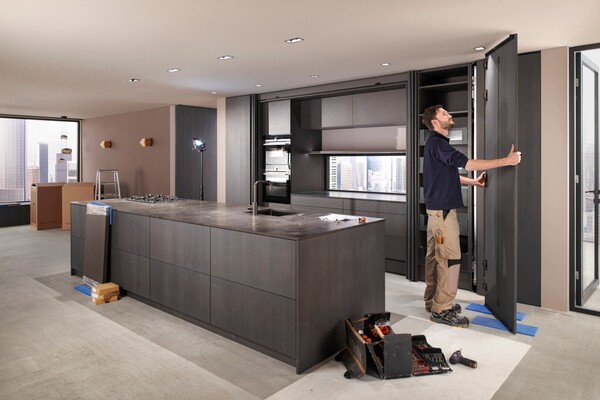

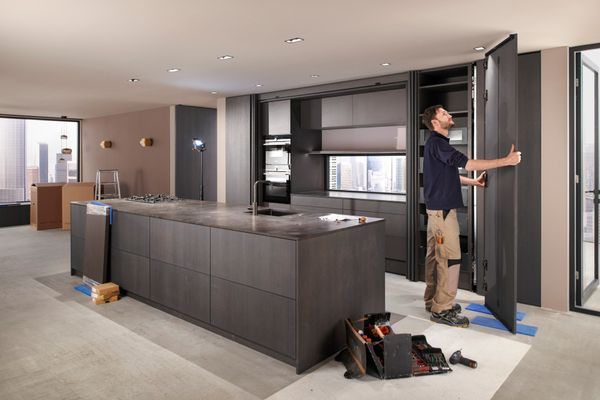

Pre-assembly enables easy installation when on the jobsite
Thanks to the well-thought-out pocket construction, REVEGO can be pre-assembled in the workshop and then transported to the end user. Our pocket systems can be installed quickly and simply like any standard tall cabinet. Align and mount the pockets, install the doors and track, make any final adjustments – and that's it!
Video Player is loading.
This is a modal window.
The media could not be loaded, either because the server or network failed or because the format is not supported.
Assembly, adjustment and removal
Well-thought-out design
Pre-assembly of pockets and fronts enables quick and precise installation. This increases efficiency when on the jobsite.

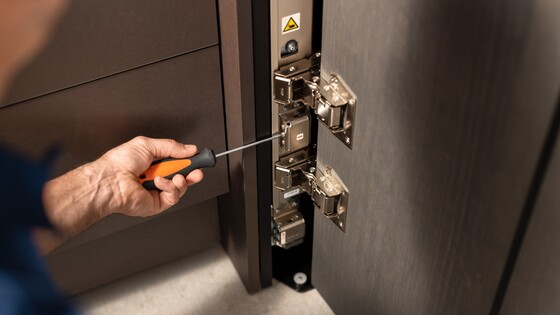

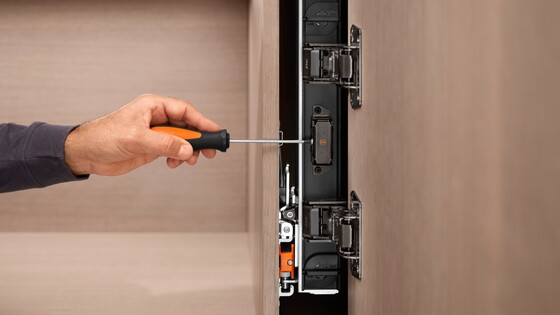

Easy adjustment
A perfect gap layout is achieved thanks to
precise 3-dimensional adjustment and large adjustment range. Adjustment features are easily accessible and intuitive to use.
Simple removal
Individual components can be easily removed for servicing (even from built-in cabinets) thanks to the integrated service interface.
Installation instructions
Assembly videos
REVEGO uno – Pre-assembly of pocket
This video shows the pre-assembly of the pocket for REVEGO uno.
REVEGO uno – Pre-installation preparation of the front
This video shows the pre-installation preparation of the REVEGO uno front, including the possible door support for REVEGO uno.
REVEGO uno – Adjustments
This video shows how to perform the side, height, depth and tilt adjustments for REVEGO uno.
REVEGO duo – Pre-assembly of pocket
This video shows the pre-assembly of the pocket for REVEGO duo.
REVEGO duo – Pre-installation preparation of fronts
This video shows the pre-installation preparation of REVEGO duo fronts, including the possible door supports for REVEGO duo.
REVEGO duo – Pre-installation preparation of the track cover panel and fixed shelf
This video shows the pre-installation preparation of the track cover panel and fixed shelf for REVEGO duo, REVEGO uno + duo as well as REVEGO duo + duo.
REVEGO duo – Adjustments
This video shows how to perform the side, height, depth and tilt adjustments for REVEGO duo, including the depth adjustment for possible door supports.
REVEGO uno + duo – Final assembly
This video shows the on-site installation of the REVEGO uno + duo, including the pre-assembled pockets, prepared fronts as well as track cover panel and fixed shelf.
REVEGO duo + duo final assembly
This video shows the on-site installation of the REVEGO duo + duo application, including the pre-assembled pockets, fronts as well as track cover panel and fixed shelf.
REVEGO duo final assembly
This video shows the on-site installation of the REVEGO duo application, including the pre-assembled pocket, prepared front as well as track cover panel and fixed shelf.
REVEGO uno final assembly
This video shows the on-site installation of the REVEGO uno single door application, including the pre-assembled pocket and front.
EASY ASSEMBLY App
The EASY ASSEMBLY App provides step-by-step instructions and videos right in the palm of your hand—whether you're in the cabinet shop or on the jobsite. Download it in the Apple App Store or Google Play.
Assembly devices
Blum offers a wide range of boring and insertion machines, assembly devices and templates to make installing Blum products accurate, quick and easy.
