TIP-ON for doors
Easy assembly
TIP-ON offers sophisticated technology and easy adjustment thanks to the integrated door gap adjustment feature. You can also use special assembly templates for additional support during installation to ensure that TIP-ON functions perfectly.

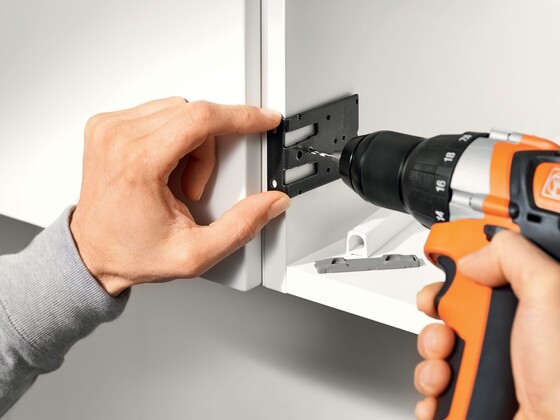

The fully enclosed TIP-ON housing ensures perfect installation and protects the technology on the inside of the TIP-ON unit. You can use the BLUMOTION and TIP-ON for doors boring template to pre-bore the hole.

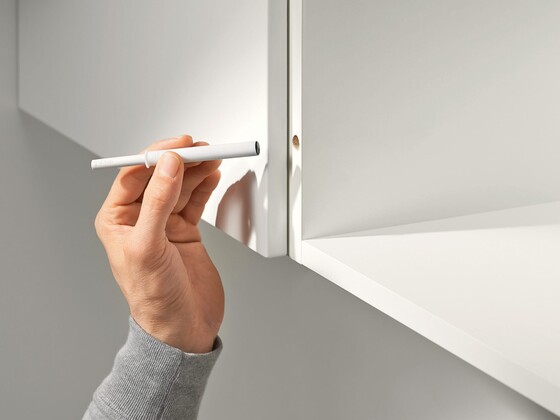

The mounting position is indicated on the lower part of the adapter plate. Or you can use the mounting plate template or universal individual template for positioning.

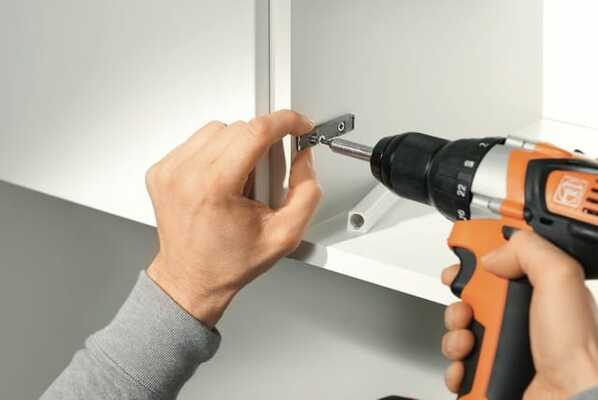

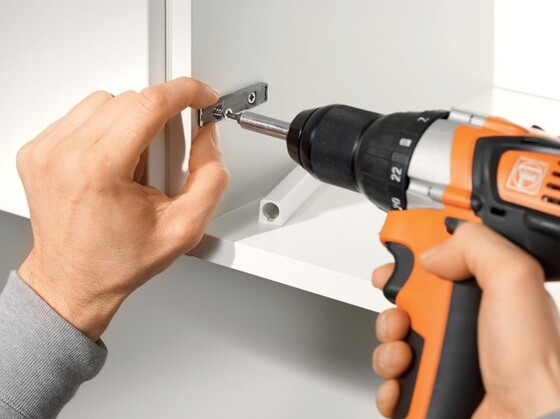

The adapter plates can be attached with wood screws or system screws.

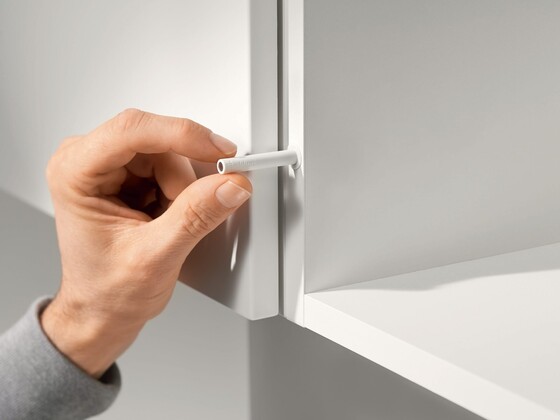

The arrow markings tell you in which direction to turn the ejector pin. One turn (or 4 click-stop positions) adjusts the door gap by 1 mm. The ejector pin cannot be turned beyond the pre-defined adjustment range so it always stays safely within the TIP-ON housing.
