TIP-ON BLUMOTION for MOVENTO
Combine MOVENTO with TIP-ON BLUMOTION
MOVENTO runners have been designed to support the mechanical opening support system of TIP-ON BLUMOTION. Different nominal lengths and weight ranges can be combined with different TIP-ON BLUMOTION units to get the exact open and closing motion you desire.
Cabinet profile
|
125
|
12-21
|
|
|
170
|
18-30
|
|
|
135
Waste/Recycle set |
21
|
|
|
*Per ANSI/BHMA A156.9 Testing Standards |
||
| Static load rating* (Ib) | Nominal length (in) | |
|---|---|---|
|
125
|
12-21
|
|
|
170
|
18-30
|
|
|
135
Waste/Recycle set |
21
|
|
|
*Per ANSI/BHMA A156.9 Testing Standards |
||

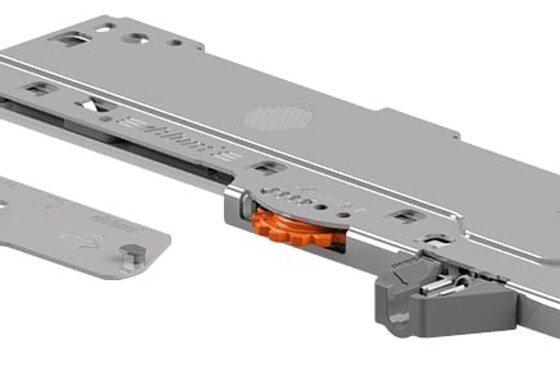

TIP-ON BLUMOTION units and triggers
| Nominal length | Weight range | Unit | Color coding system |
|---|---|---|---|
|
12"
|
≤ 44 lb
|
S1
|
Light gray
|
|
15" - 30"
|
≤ 44 lb
44 - 88 lb 88 - 155 lb |
L1
L3 L5 |
Light gray
Dust gray Black |
Selection support
Our Product Configurator will help you select the right TIP-ON BLUMOTION unit to achieve the best results.
Synchronization
We recommend using the synchronization feature to ensure top quality performance.

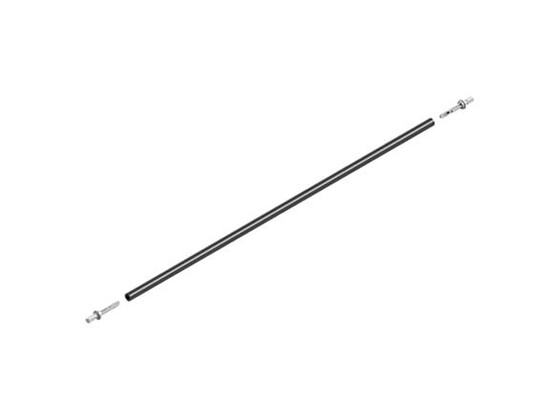

Use the synchronization rod with adapters for opening widths of 314 mm (12-3/8") to 1385 mm (54-1/2").

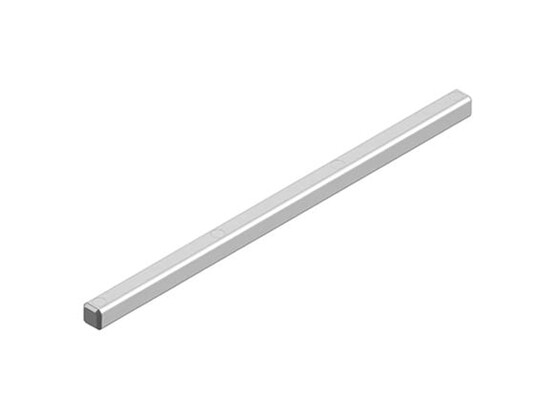

The synchronization rod for narrow applications fits opening widths of 281 mm (11-1/16") to 305 mm (12").
Applications
