TIP-ON BLUMOTION for MERIVOBOX

Well-thought-out product details

To implement handle-less fronts, simply combine MERIVOBOX with the TIP-ON BLUMOTION mechanical opening support system. This combination is possible thanks to the fully redesigned, innovative L-shaped cabinet profile of MERIVOBOX. Different TIP-ON BLUMOTION units are available to suit different nominal lengths and weight ranges. All other components are universal.

Cabinet profile

ME9641475_AA_FOT_FO_BAU_#SALL_#AIP01_#V1

Load bearing capacity

Nominal length


40 kg

270 - 600 mm


70 kg

450 - 600 mm


Unit and latch set

ME15272019_AA_FOT_FO_BAU_#SALL_#AMC_#V1
Nominal length Weight range Unit Colour coding system
270-300 mm ≤ 10 kg
>10-20 kg
S0
S1
White
Light grey
350-650 mm ≤ 20 kg
15-40 kg
L1
L3
Light grey
Dust grey
450-600 mm 35-70 kg L5 Black
Helping you select the right TIP-ON BLUMOTION unit

It is important to use the right TIP-ON BLUMOTION unit to achieve top quality opening and closing. Please use our Product Configurator to select the right fittings.

 Start Product Configurator

This brochure also contains useful information on how to select the right unit.
Assistance selecting the right TIP-ON BLUMOTION unit Assistance selecting the right TIP-ON BLUMOTION unit PDF | 509 KB

Synchronisation

We recommend using the synchronisation feature to enlarge the trigger range and achieve top quality performance. A synchronisation linkage is used to this end.

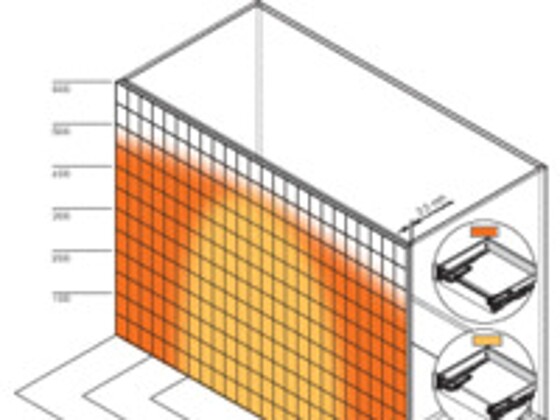

Trigger range with and without synchronisation feature

Synchronisation linkage with synchronisation adapters for internal cabinet widths of ≥ 294 mm

One-piece synchronisation can be cut to size for internal cabinet widths of 238 – 294 mm

Case studies

Innovative technology

TIP-ON BLUMOTION delivers top quality motion, enhances workflows and works on a purely mechanical basis.

Extra convenience guaranteed

No worries if your hands are full. Thanks to TIP-ON BLUMOTION, pull-outs open at a single touch.

Extensive trigger range

The synchronisation feature ensures an extensive trigger range so that even wide and high fronts open with ease.

Excellent corrosion protection properties in high humidity

TIP-ON BLUMOTION works on a purely mechanical basis and is therefore ideally suited for implementation in bathrooms.

TIP-ON BLUMOTION in living rooms

TIP-ON BLUMOTION allows you to introduce modern design concepts to all living areas.

TIP-ON BLUMOTION in hallways

Even high and wide fronts open at a single touch thanks to the extensive trigger range.
