TIP-ON BLUMOTION for TANDEMBOX
Easy manufacturing and assembly
Pull-outs and drawers that are to be equipped with TIP-ON BLUMOTION for TANDEMBOX are made as normal. No additional work is required. Blum’s practical templates make manufacturing and assembly easy.
Manufacturing, assembly and adjustment
Standard cabinets and drawers
TIP-ON BLUMOTION can be implemented with standard cabinets and fronts. No modifications are needed.

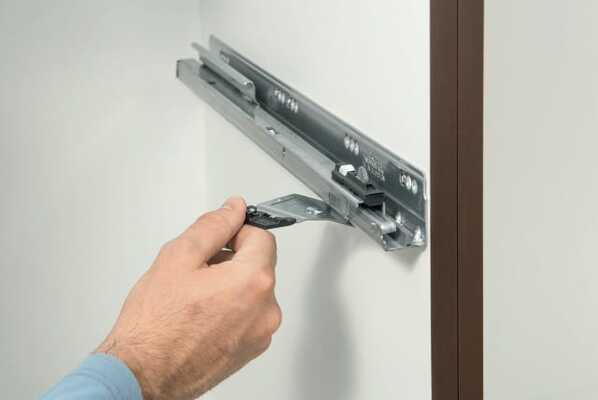

Like most components, the TIP-ON BLUMOTION unit is assembled without tools.
Precise front gap alignment

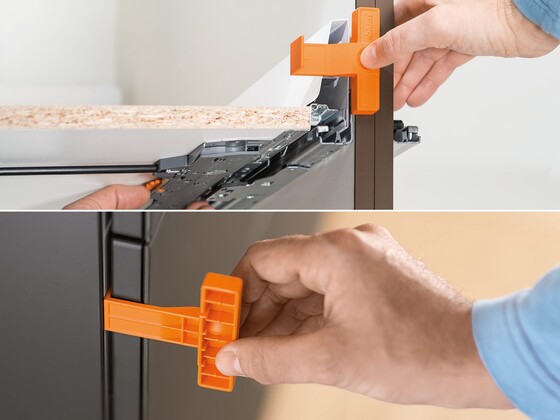

The front gap can easily be adjusted to 2.5 mm using the gap template (even if the front is already in position).
The synchronisation feature enlarges the trigger range and improves the TIP-ON BLUMOTION function. Two synchronisation options are available for different internal cabinet widths. Both can be mounted without tools.
Internal cabinet widths starting from 287 mm
TIP-ON BLUMOTION units for internal cabinet widths of 287 mm or more are synchronised with synchronisation adapters and a synchronisation linkage.

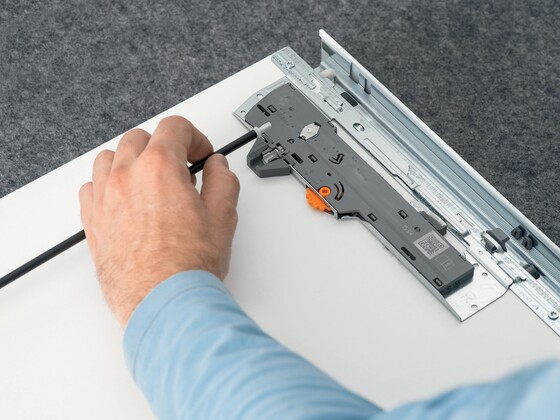

The symmetrical synchronisation linkage is clipped onto the TIP-ON BLUMOTION unit without tools.
Internal cabinet widths of 238 to 286 mm

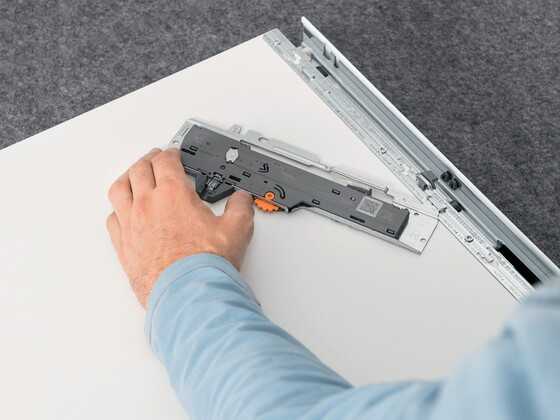

One-piece synchronisation is used instead of a synchronisation linkage and adapters for smaller internal cabinet widths.
To achieve top quality motion, we recommend using the following accessories for TIP-ON BLUMOTION for TANDEMBOX for cabinet widths of ≥ 750 mm.

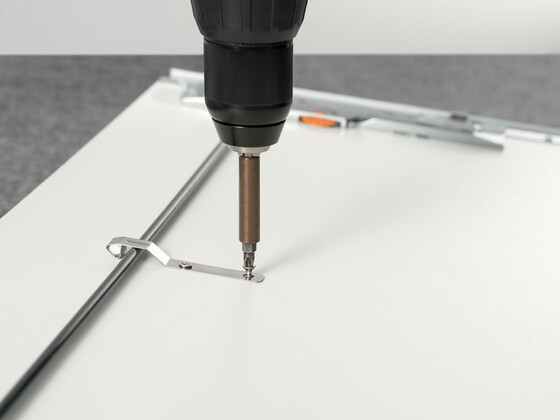

Support for synchronisation linkage
For pull-outs over a cabinet base or cross member. Prevents the synchronisation linkage from sagging.

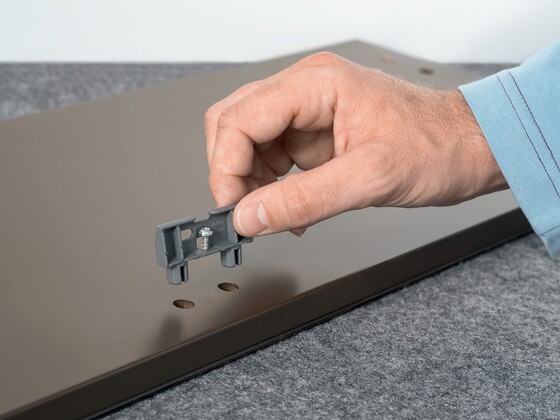

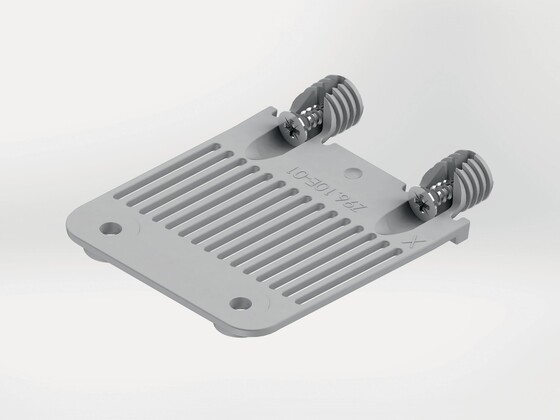

Base support bracket
For pull-outs over a cabinet base or cross member. To support the pull-out base.
To stabilise high and wide fronts.
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
