SERVO-DRIVE for pull-out systems

Easy assembly and installation

Ease of installation is a testament to the quality and precision of any product. Many SERVO-DRIVE components can be assembled without tools.

Assembly, adjustment and removal

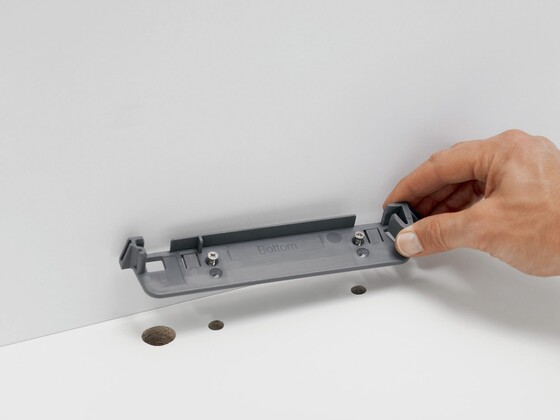

BOX0846_MO_FOT_FO_BAU_#SALL_#APR6I_#V1

Place bracket profile attachments over drillings and secure with screws. Then insert bracket profile in the attachments.

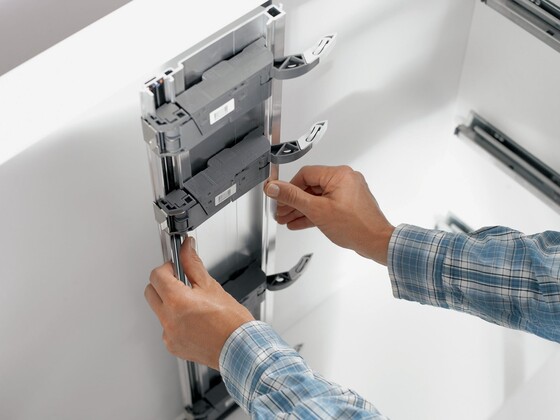

BOX0832_MO_FOT_FO_BAU_#SALL_#APR6I_#V1

Hold drive units in the right position on the bracket profile and lock into place.

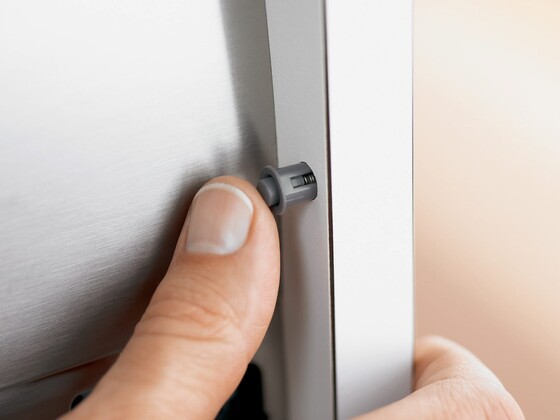

BOX0838_MO_FOT_FO_BAU_#SALL_#APR6I_#V1

Attach special SERVO-DRIVE Blum distance bumpers.

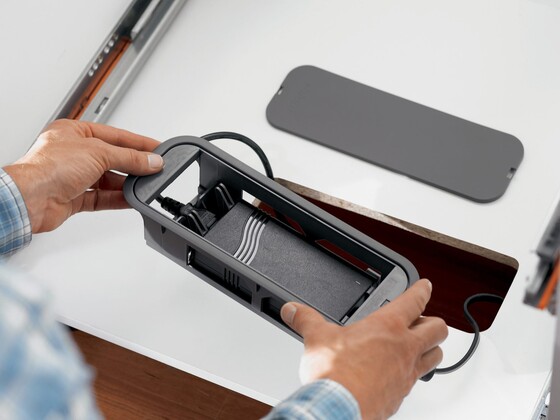

BOX0834_MO_FOT_FO_BAU_#SALL_#APR6I_#V1

Put the power supply unit in the power supply unit housing.

Troubleshooting guide

Are you experiencing difficulties during the installation or operation of SERVO-DRIVE? If so, you will find possible causes and troubleshooting solutions here.

To the troubleshooting guide

Assembly devices

Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is simple and precise. Assembly must be precise to deliver perfect motion.

 Go to Assembly Device Selector

 Open catalogue

Troubleshooting guide

Are you experiencing difficulties during the installation or operation of SERVO-DRIVE? If so, you will find possible causes and troubleshooting solutions here.

To the troubleshooting guide

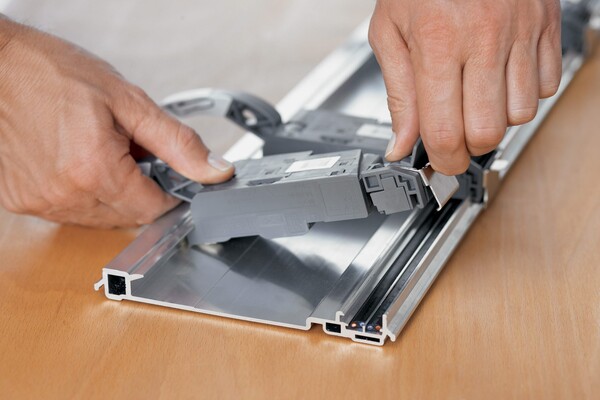

BOX0831_MO_FOT_FO_BAU_#SALL_#APR6I_#V1
