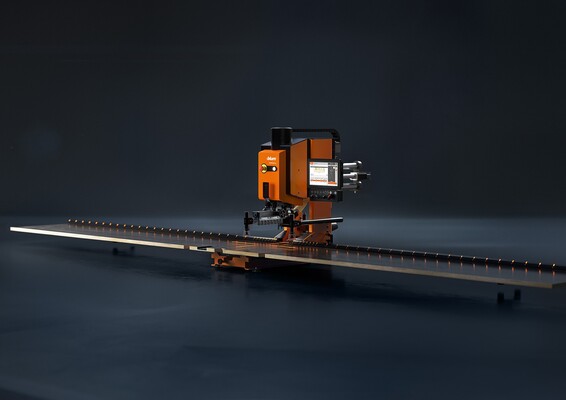

MINIPRESS top

Well equipped for the future

Optimum manufacturing efficiency starts with precise and consistent processes, accurate working methods and little error tolerance. The result is quality down to the last detail. We want our assembly machines to meet your exacting professional requirements. That is why we have developed a new drilling and insertion machine that makes handling and setup even easier – MINIPRESS top. New features enable fast and accurate handling and help you optimise your work processes. For more precision, efficiency and quality. Combined with EASYSTICK, MINIPRESS top is a perfect package for all drilling operations on cabinets, doors and fronts.

MINIPRESS top trailer

What are the advantages of MINIPRESS top combined with EASYSTICK?

The machine can be employed for a variety of applications and is easy to use. What is more, the device can be equipped to suit your personal needs. Combined with EASYSTICK, MINIPRESS top will make your job easier and more accurate. More information on EASYSTICK.

Accurate display

Increase accuracy from the start by using a digital display to set dimensions

Large depth

Carry out centre line drilling for deep cabinets. The large depth adjustment of the vertical drilling unit (up to 350 mm) makes it possible.

Automatic y-axis movement

Benefit from the automatic setting of the vertical drilling unit when combined with EASYSTICK

New tool-free drilling head clamping

Change the drilling head quickly and simply with the new clamping technology

Automatic positioning system

Determine drilling positions quickly and accurately using the EASYSTICK ruler which moves to the correct position automatically

Digitalised work processes

Plan cabinets directly on the machine or transfer your data from the Cabinet Configurator

Horizontal drilling machine

Carry out exact dowel and connector drilling thanks to easily accessible operating elements

MINIPRESS top

Digitalised work processes

MINIPRESS top combined with EASYSTICK digitalises planning and manufacturing. You can either plan directly on the machine or use a USB memory stick to transfer your data from the Cabinet Configurator – quickly and simply. Imported manufacturing data can be easily retrieved and edited. The EASYSTICK computer also allows you to enter settings directly on MINIPRESS top. Enter cabinet data and front dimensions and select fittings – EASYSTICK will calculate the drilling positions for you.

MINIPRESS top

Vertical drilling unit moves automatically to the right position

MINIPRESS top combined with EASYSTICK automatically gives you the right stop positions. The vertical drilling unit moves along the y-axis automatically while the work table and ruler stay in the same position – simple setup, precise results. MINIPRESS top allows you to carry out centre line drilling for deep cabinets. The large depth adjustment of the vertical drilling unit (up to 350 mm) makes it possible.

MINIPRESS top

Horizontal drilling unit

Thanks to MINIPRESS top, you only need one machine for all vertical and horizontal drilling operations. The horizontal drilling unit of MINIPRESS top allows you to carry out precision drilling operations, for example, for dowels and connectors. The horizontal drilling unit is easily accessible and can be set and operated with ease.
