AVENTOS HK top
Integrated features facilitate installation and adjustment
The fixing position of AVENTOS HK top is the same regardless of application and cabinet height. Once the lift mechanism has been precisely adjusted to the weight of the front, the stay lift will open, close and hold with reliable ease.
Two types of assembly

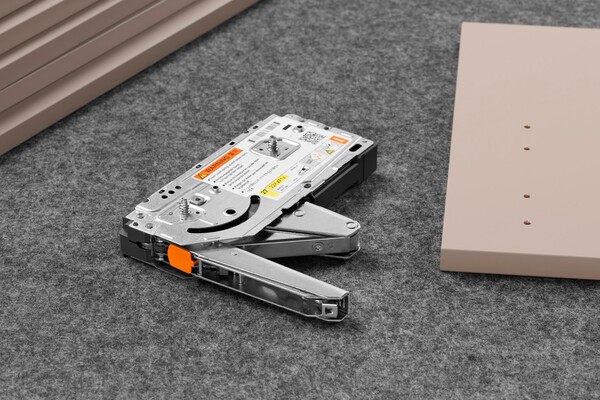

Choose between two types of symmetrical lift mechanisms – and consequently between two types of assembly. Either pre-drill holes into cabinet side and use pre-mounted system screws to fix lift mechanisms, or simply screw on lift mechanisms with integrated positioning system.
Lift mechanism with positioning system
Simply position this type of lift mechanism so it touches the top panel and is flush with the cabinet face, then screw on. No pre-drilling needed.
Assembly with pre-mounted system screws
This type of lift mechanism is fixed to the cabinet side with two system screws and two pegs. Requires four holes in a horizontal line in system 32 .
Easy assembly and adjustment
No protruding parts
Lever arms are closed so there are no protruding parts. This greatly facilitates in-house transportation.
Integrated safety mechanism
The integrated safety mechanism stops the lever arm from opening unintentionally.
CLIP mechanism
The tried and tested CLIP mechanism is tool-free, quick and easy.
Infinitely variable power setting
Lift mechanisms can be set from the front without having to remove cover caps. Consequently, fronts will stay in any position desired.
3-dimensional adjustment
Adjustment is achieved using TORX screws - quick, easy and low in wear.
Integrated opening angle stop
An opening angle stop with infinitely variable setting has been integrated into the fitting.
Installation instructions
Installation video
AVENTOS HK top
This video shows the assembly of the two different lift mechanism types, the safety mechanism, the front fixing bracket, the installation of the cover caps, the adjustment of the lift mechanism, the gap layout and the opening angle stop.
AVENTOS HK top – opening angle stop
This video shows the adjustment of the integrated opening angle stop for AVENTOS HK top.
AVENTOS HK top – lift mechanism with chipboard screws
This video shows the assembly of the lift mechanism with chipboard screws including integrated positioning for AVENTOS HK top.
AVENTOS HK top – lift mechanism with pre-mounted system screws
This video shows the assembly of the lift mechanism with pre-mounted system screws for AVENTOS HK top.
AVENTOS HK top – safety mechanism
This video shows the opening of the lever arm with the safety mechanism for AVENTOS HK top.
AVENTOS HK top – lift mechanism adjustment
This video shows the lift mechanism adjustment for AVENTOS HK top. Adjust the lift mechanism to the weight of the front and the lift system stops in any position.
