AVENTOS HK-S
Virtually tool-free assembly
AVENTOS HK-S components are easy to assemble. Once the lift mechanism has been precisely adjusted to the weight and size of the front, the small stay lift will open, close and hold with reliable ease.
Easy assembly and adjustment

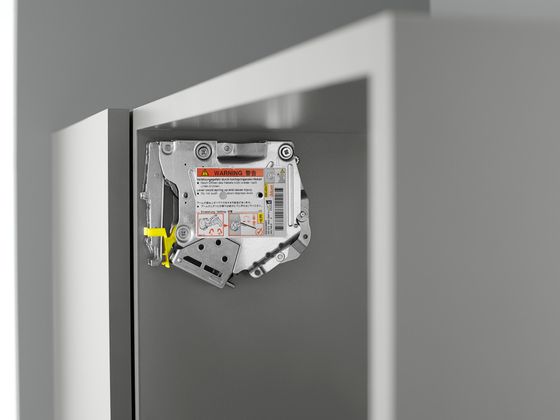

No protruding parts
Lever arms are closed so there are no protruding parts. This facilitates transportation and delivery.

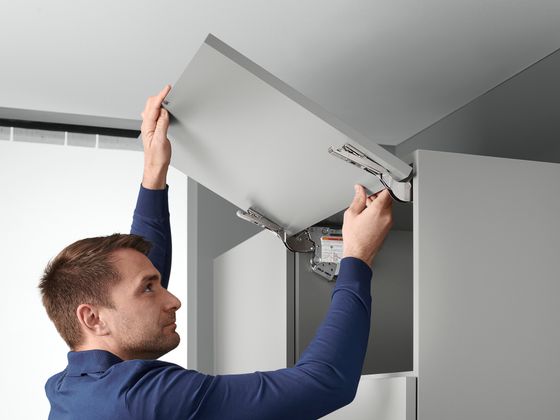

CLIP mechanism
The tried and tested CLIP mechanism is tool-free, quick and easy.

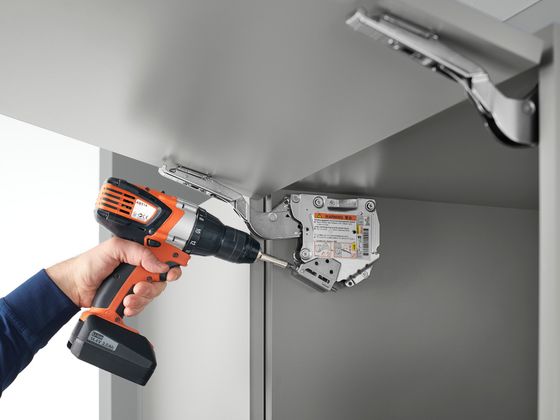

Infinitely variable power setting
Use a cordless screwdriver to precisely adjust the lift mechanism to the weight of the front. And the front will hold in any position.

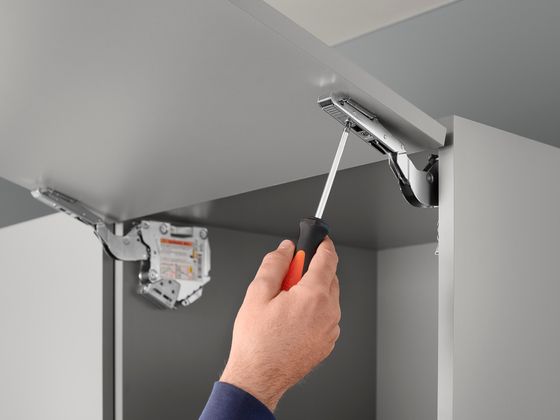

3-dimensional adjustment
Easy 3-dimensional adjustment produces perfect gap alignment.
Assembly instructions
AVENTOS HK-S front fixing bracket for narrow alu frames
AVENTOS HK-S opening angle stop
PDF | 741 KB | 07-13-2023
AVENTOS HK-S special applications
PDF | 1 MB | 07-13-2023
AVENTOS HK-S standard applications
PDF | 989 KB | 07-13-2023
AVENTOS HK-S transportation lock and removal
PDF | 165 KB | 06-15-2023
Installation Sheet - AVENTOS HK-S
PDF | 2 MB | 11-26-2020
SERVO-DRIVE for AVENTOS
PDF | 7 MB | 01-10-2024
Assembly videos
AVENTOS HK-S adjustment options
The adjustment options for height, side and depth of the front are shown in this sequence.
AVENTOS HK-S
This video shows the easy assembly and adjustment of the AVENTOS HK-S lift system for small stay lifts.
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
