TIP-ON BLUMOTION for MOVENTO
Well-thought-out product details
A special MOVENTO runner has been designed to support the mechanical opening support system. Various nominal lengths and weight ranges can be implemented using the different TIP-ON BLUMOTION units available. All other components are universal.
Cabinet profile
| Load bearing capacity | Nominal length |
|---|---|
|
40
|
270 - 600
|
|
60
|
450 - 750
|

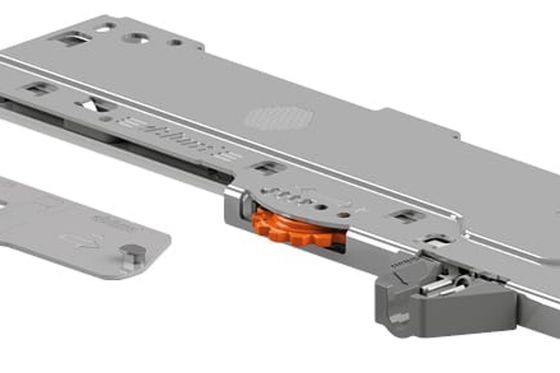

Unit and latch set
| Nominal length | Weight range | Unit | Colour coding system |
|---|---|---|---|
|
270-320 mm
|
≤ 10 kg
10-20 kg |
S0
S1 |
White
Light grey |
|
350-750 mm
|
≤ 20 kg
15-40 kg 35-60 kg |
L1
L3 L5 |
Light grey
Dust grey Black |
Helping you select the right TIP-ON BLUMOTION unit
It is important to use the right TIP-ON BLUMOTION unit to achieve top quality opening and closing. Please use our Product Configurator to select the right fittings.
Synchronisation
We recommend using the synchronisation feature to enlarge the trigger range and achieve top quality performance. A synchronisation linkage is used to this end.
Trigger range with and without synchronisation feature
Synchronisation linkage with synchronisation adapters for internal cabinet widths of ≥ 314 mm
