TIP-ON BLUMOTION for MOVENTO
Well-thought-out product details
A special MOVENTO runner has been designed to support the mechanical opening support system. Various nominal lengths and weight ranges can be implemented using the different TIP-ON BLUMOTION units available. All other components are universal.
Load bearing capacity

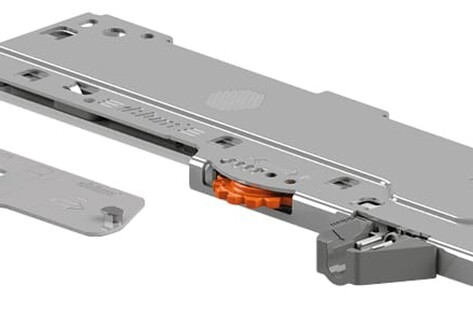

Unit and latch set
|Nominal length||Weight range||Unit||Colour coding system|
|270-320 mm||≤ 10 kg
|350-750 mm||≤ 20 kg
|350-600 mm||≤ 20 kg
|L1 (for sink pull-out)
L3 (for sink pull-out)
We recommend using the synchronisation feature to enlarge the trigger range and achieve top quality performance. A synchronisation linkage is used to this end.
One-piece synchronisation can be cut to size for internal cabinet widths of 265 – 313 mm
