TIP-ON for doors
Easy opening with integrated door gap adjustment

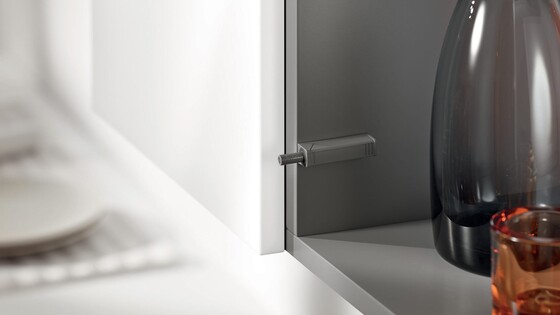

Handle-less fronts open at a single touch with TIP-ON, the mechanical opening support system from Blum. To close, simply press shut. TIP-ON is combined with the proven unsprung CLIP top hinge to deliver top quality of motion for doors.
Tool-free depth adjustment
The adjustment feature (+4/-1 mm) has been incorporated into the TIP-ON unit so even TIP-ON for drilling has integrated gap adjustment. Check the arrow markings on the ejector pin. To adjust depth, simply turn the ejector pin left or right.
You will always find the right TIP-ON unit for doors and AVENTOS stay lifts thanks to the wide range of colours and adapter plates. You can choose between the short and long version of TIP-ON, for drilling or with a screw-on adapter plate depending on the application.
TIP-ON can be matched to cabinet interiors. TIP-ON comes in four colour options, silk white, platinum grey, carbon black and nickel-lacquered, offering you greater freedom of design, and blending harmoniously with furniture interiors.
