TIP-ON BLUMOTION for LEGRABOX
Well-thought-out product details

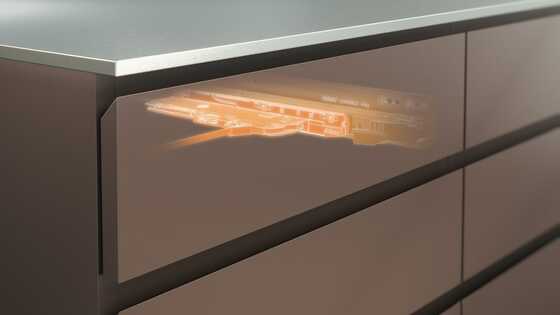

A special LEGRABOX cabinet profile has been designed to support the mechanical opening support system. Various nominal lengths and weight ranges can be implemented using the different TIP-ON BLUMOTION units available. All other components are universal.
LEGRABOX BLUMOTION S cabinet profile
Load bearing capacity

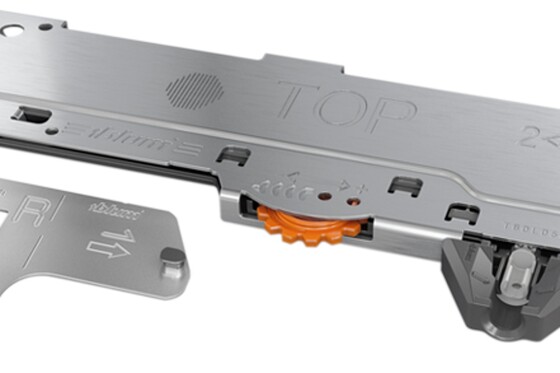

Unit and latch set
|Nominal length||Weight range||Unit||Colour coding system|
|270-300 mm||≤ 10 kg
|350-650 mm||≤ 20 kg
||≤ 20 kg
|L1 (for sink pull-out)
L3 (for sink pull-out)

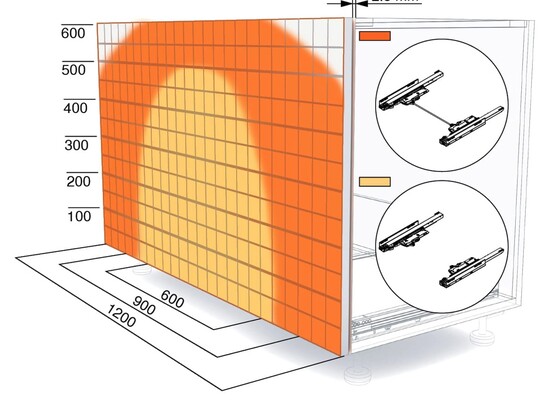

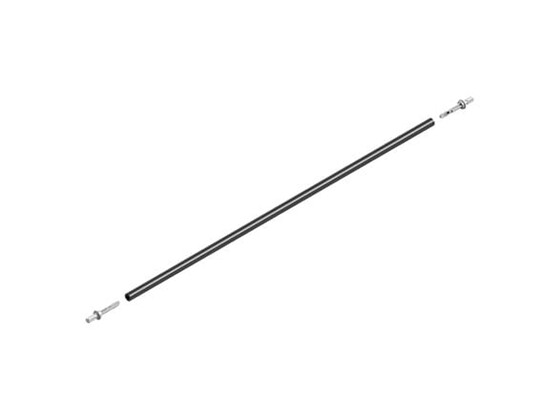

We recommend using the synchronisation feature to enlarge the trigger range and achieve top quality performance. A synchronisation linkage is used to this end.

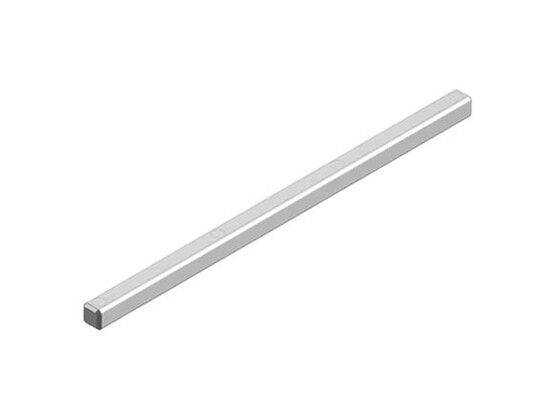

One-piece synchronisation can be cut to size for internal cabinet widths of 245 – 293 mm
