TIP-ON BLUMOTION for LEGRABOX
Well-thought-out product details

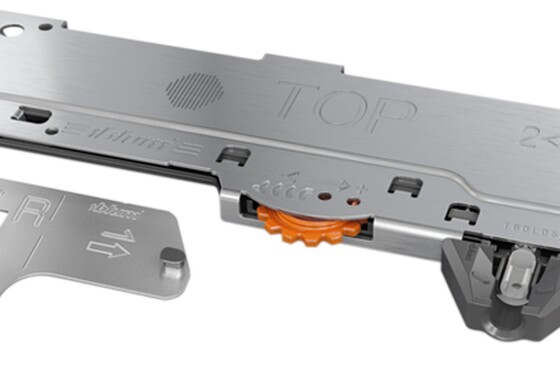

A special LEGRABOX cabinet profile has been designed to support the mechanical opening support system. Various nominal lengths and weight ranges can be implemented using the different TIP-ON BLUMOTION units available. All other components are universal.
LEGRABOX BLUMOTION S cabinet profile
| Load bearing capacity | Nominal length |
|---|---|
|
40
|
270 - 600
|
|
70
|
450 - 650
|
Unit and latch set
| Nominal length | Weight range | Unit | Colour coding system |
|---|---|---|---|
|
270-300 mm
|
≤ 10 kg
10-20 kg |
S0
S1 |
White
Light grey |
|
350-650 mm
|
≤ 20 kg
15-40 kg 35-70 kg |
L1
L3 L5 |
Light grey
Dust grey Black |
Helping you select the right TIP-ON BLUMOTION unit
It is important to use the right TIP-ON BLUMOTION unit to achieve top quality opening and closing. Please use our Product Configurator to select the right fittings.
This brochure also contains useful information on how to select the right unit.
DL Link FO-081
Synchronisation
We recommend using the synchronisation feature to enlarge the trigger range and achieve top quality performance. A synchronisation linkage is used to this end.
Trigger range with and without synchronisation feature

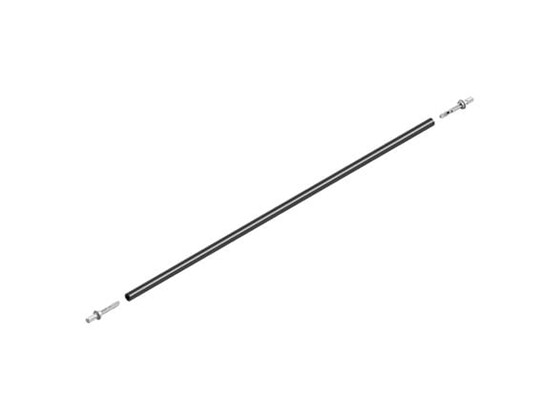

Synchronisation linkage with synchronisation adapters for internal cabinet widths of ≥ 294 mm

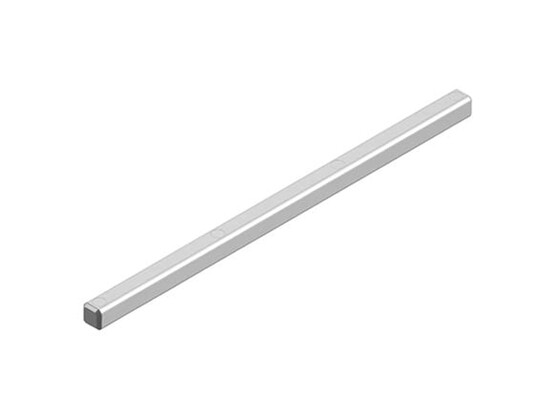

One-piece synchronisation can be cut to size for internal cabinet widths of 245 – 293 mm
