CAD/CAM Data Service
The fast and simple way to access CAD/CAM data
Blum offers a wide range of CAD/CAM formats to support you with planning and manufacturing. Our centralised CAD/CAM Data Service provides an overview of all the data available. You can download the 3D CAD data of individual products or configurations, 2D production drawings, 2D installation situations and entire CAD packages quickly and simply - around the clock.
Content and features at a glance
Export fittings data in the usual CAD formats (even entire CAD packages) at the press of a button.
2D installation situations
2D representations of Blum fittings quickly show you how much space you need in your cabinet.
2D production drawings
Production drawings help you determine the right drilling positions in wooden parts.
3D CAD configurations
You can download the 3D CAD data of configured applications in all the usual formats.
3D data of individual products
Download the 3D CAD data of Blum products in all the usual formats.
Advantages for cabinet makers
Access up-to-date CAD/CAM data checked by the manufacturer.
Download the CAD/CAM data of individual products or complete packages of data quickly and simply.
Can’t find the planning data you need? Then simply ask us for drawings of special applications.
Save time obtaining CAD/CAM data.
Download the CAM machining macros of Blum fittings and use them on your CNC machine.
Save time programming your CNC machine and achieve even preciser results.
Our wide range of WOP formats is compatible with the CNC machines of most manufacturers.

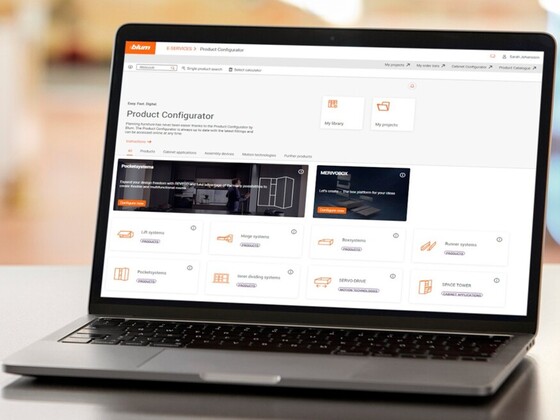

Our Product Configurator helps you find the right Blum fittings for your application. The tool not only produces precise CAD configurations, but also assists with calculations and ordering and offers other useful features.
If you’d like to know more about this service, please get in touch with your contact or use the following contact form.
Your contact will be able to activate other E-SERVICES that facilitate day-to-day operations. We would be happy to advise you.
