AVENTOS HS
Virtually tool-free assembly
AVENTOS HS component parts are easily assembled with CLIP technology. And adjustments are quick and simple. Once the lift mechanism has been precisely adjusted to the weight and size of the front, AVENTOS HS will open, close and hold with reliable ease. Protruding parts can be removed to facilitate transportation.
Easy assembly and adjustment
No protruding parts
Protruding parts can be removed to facilitate transportation.

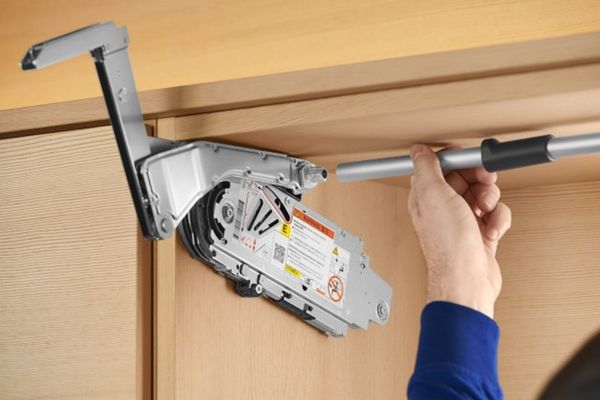

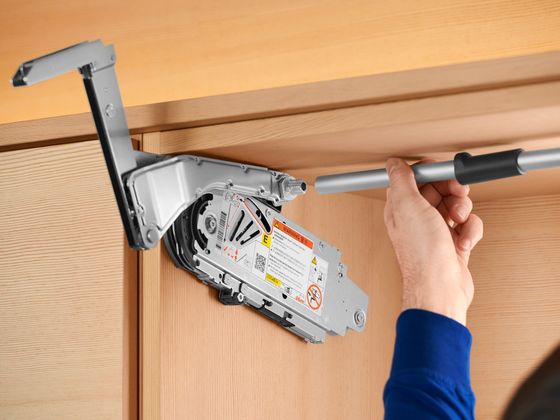

Tool-free cross stabiliser
The tool-free cross stabiliser for AVENTOS HS greatly facilitates assembly.

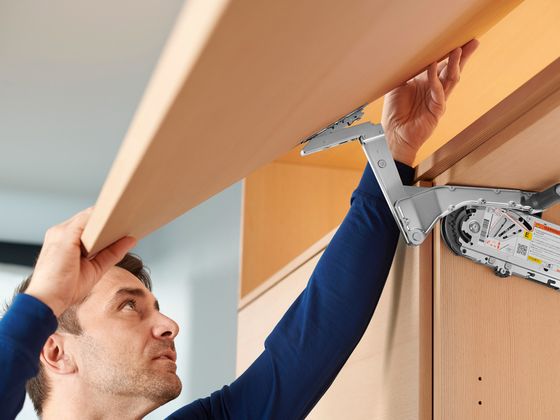

CLIP mechanism
The tried and tested CLIP mechanism is tool-free, quick and easy.

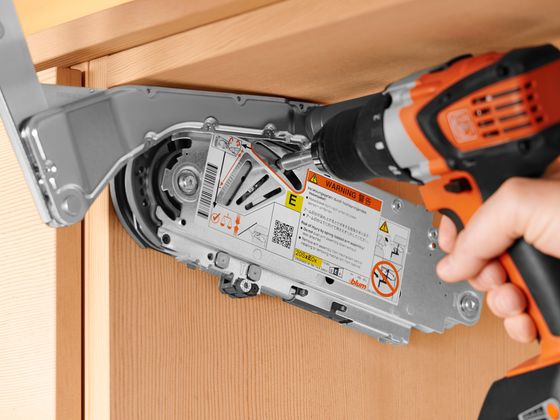

Infinitely variable power setting
Use a cordless screwdriver to precisely adjust the lift mechanism to the weight of the front. And the front will hold in any position.

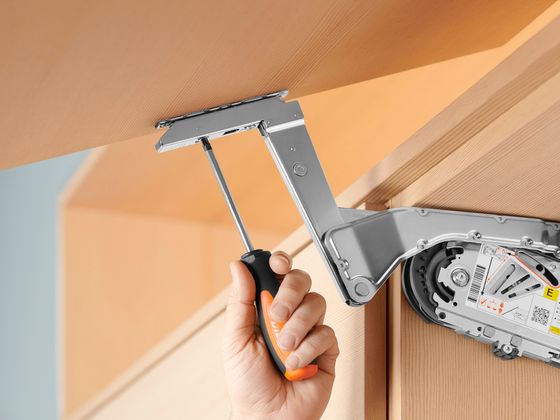

3-dimensional adjustment
Easy 3-dimensional adjustment produces perfect gap alignment.
Blum assembly devices
Everything you need
Our assembly devices make your work easier and help you to manufacture Blum products quickly, precisely and free of faults, so that you achieve perfect results with every assembly step.
Select product group
17 Results found
Universal drilling template
For marking or pre-drilling fixing positions for lift, box and runner systems
Drilling template for Blum distance bumper
For bumper drilling on an unattached or attached front and on the cabinet
Positioning template for catch plate
For determining the position of the TIP-ON screw-on catch plate
MINIPRESS P
Drilling and insertion machine for Blum fittings, vertical drilling, can be retrofitted with EASYSTICK
Drilling template for hinge systems
For transferring measurements for hinge and mounting plate fixing positions from the door to the cabinet and vice versa
Angle template
For pre-drilling the fixing positions of mounting plates and adapter plates for BLUMOTION | TIP-ON on doors
Universal marking template
For marking the fixing positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates
Universal drilling template
For pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates
Drilling template for hinges
For pre-drilling the fixing positions of hinges as well as mounting plates and adapter plates
Drilling template for BLUMOTION/TIP-ON
For drilling the edge fixing positions for BLUMOTION (on handle side and hinge side) and TIP-ON
Universal individual template
For pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates
Drilling template for the SERVO-DRIVE switch
Simple hand-held tool for precision drilling of holes for the SERVO-DRIVE switch
Marking template for AVENTOS HS top | HL top | HK top front fixing bracket
For marking the fixing positions for AVENTOS front fixings
MINIPRESS top for EASYSTICK
Drilling and insertion machine for Blum fittings, vertical and horizontal drilling with EASYSTICK
Drilling template for mounting plates
For drilling the fixing positions for cruciform mounting and cruciform adapter plates
Assembly instructions
Assembly video
AVENTOS HS adjustment options
The adjustment options for height, side and depth of the front are shown in this sequence.
AVENTOS HS
This video shows the easy assembly of the AVENTOS HS lift system.
AVENTOS HS short film
This product snippet shows the motion, the variable stop and the different cover cap colours of AVENTOS HS.
EXPANDO T for thin fronts
This assembly video shows the assembly of thin fronts with EXPANDO T. The fixing method for CLIP top BLUMOTION 155°, AVENTOS HK top and LEGRABOX is shown.
AVENTOS image video
Background information on the development of AVENTOS
Presentation video for AVENTOS HF, HS, HL and HK top
Presentation of the AVENTOS lift systems HF, HS, HL and HK top
