AVENTOS HK top
Integrated features facilitate installation and adjustment
The fixing position of AVENTOS HK top is the same regardless of application and cabinet height. Once the lift mechanism has been precisely adjusted to the weight of the front, the stay lift will open, close and hold with reliable ease.
Easy assembly and adjustment
No protruding parts
Lever arms are closed so there are no protruding parts. This greatly facilitates in-house transportation.

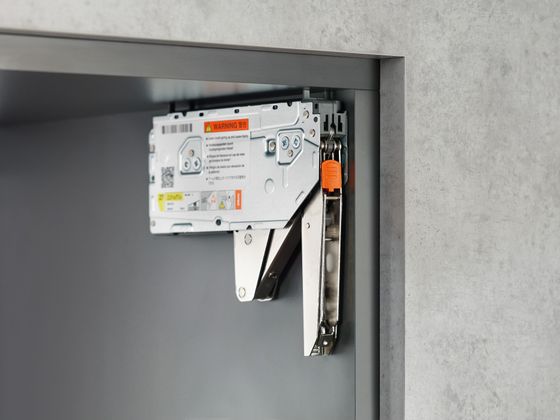

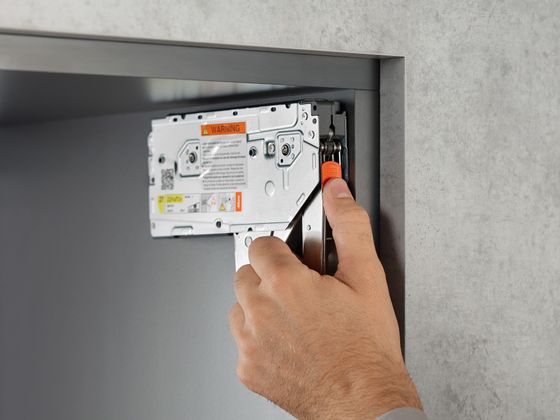

Integrated safety mechanism
The integrated safety mechanism stops the lever arm from opening unintentionally.
CLIP mechanism
The tried and tested CLIP mechanism is tool-free, quick and easy.
Infinitely variable power setting
Lift mechanisms can be set from the front without having to remove cover caps. Consequently, fronts will stay in any position desired.

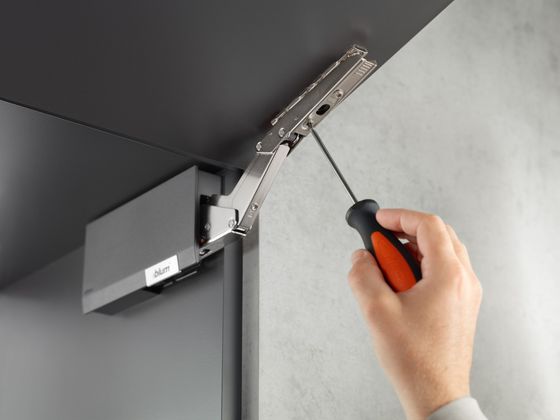

3-dimensional adjustment
Adjustment is achieved using TORX screws - quick, easy and low in wear.
Integrated opening angle stop
An opening angle stop with infinitely variable setting has been integrated into the fitting.
Blum assembly devices
Everything you need
Our assembly devices make your work easier and help you to manufacture Blum products quickly, precisely and free of faults, so that you achieve perfect results with every assembly step.
Select product group
17 Results found
Universal drilling template
For marking or pre-drilling fixing positions for lift, box and runner systems
Drilling template for Blum distance bumper
For bumper drilling on an unattached or attached front and on the cabinet
Positioning template for catch plate
For determining the position of the TIP-ON screw-on catch plate
MINIPRESS P
Drilling and insertion machine for Blum fittings, vertical drilling, can be retrofitted with EASYSTICK
Drilling template for hinge systems
For transferring measurements for hinge and mounting plate fixing positions from the door to the cabinet and vice versa
Angle template
For pre-drilling the fixing positions of mounting plates and adapter plates for BLUMOTION | TIP-ON on doors
Universal marking template
For marking the fixing positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates
Universal drilling template
For pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates
Drilling template for hinges
For pre-drilling the fixing positions of hinges as well as mounting plates and adapter plates
Drilling template for BLUMOTION/TIP-ON
For drilling the edge fixing positions for BLUMOTION (on handle side and hinge side) and TIP-ON
Universal individual template
For pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates
Drilling template for the SERVO-DRIVE switch
Simple hand-held tool for precision drilling of holes for the SERVO-DRIVE switch
Marking template for AVENTOS HS top | HL top | HK top front fixing bracket
For marking the fixing positions for AVENTOS front fixings
MINIPRESS top for EASYSTICK
Drilling and insertion machine for Blum fittings, vertical and horizontal drilling with EASYSTICK
Drilling template for mounting plates
For drilling the fixing positions for cruciform mounting and cruciform adapter plates
Installation instructions
Installation video
AVENTOS HK top
This video shows the assembly of the two different lift mechanism types, the safety mechanism, the front fixing bracket, the installation of the cover caps, the adjustment of the lift mechanism, the gap layout and the opening angle stop.
AVENTOS HK top – opening angle stop
This video shows the adjustment of the integrated opening angle stop for AVENTOS HK top.
AVENTOS HK top – lift mechanism with chipboard screws
This video shows the assembly of the lift mechanism with chipboard screws including integrated positioning for AVENTOS HK top.
AVENTOS HK top – lift mechanism with pre-mounted system screws
This video shows the assembly of the lift mechanism with pre-mounted system screws for AVENTOS HK top.
AVENTOS HK top – safety mechanism
This video shows the opening of the lever arm with the safety mechanism for AVENTOS HK top.
AVENTOS HK top – lift mechanism adjustment
This video shows the lift mechanism adjustment for AVENTOS HK top. Adjust the lift mechanism to the weight of the front and the lift system stops in any position.
