TIP-ON for doors

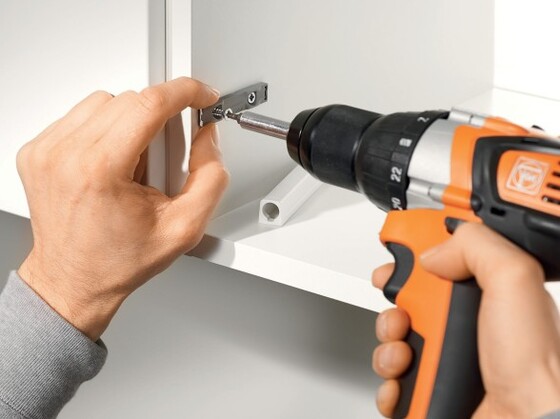

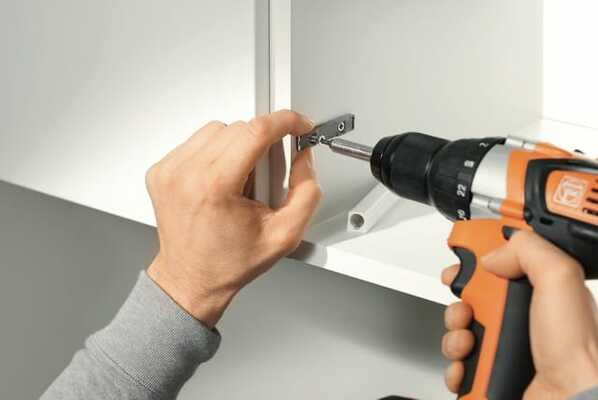

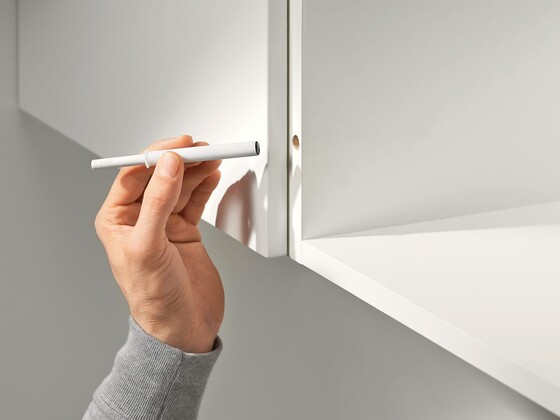

TIP-ON offers sophisticated technology and easy adjustment because the door gap adjustment feature is integrated in the fitting. There are special assembly templates by Blum. They are an extra help for installation and ensure that TIP-ON functions perfectly.

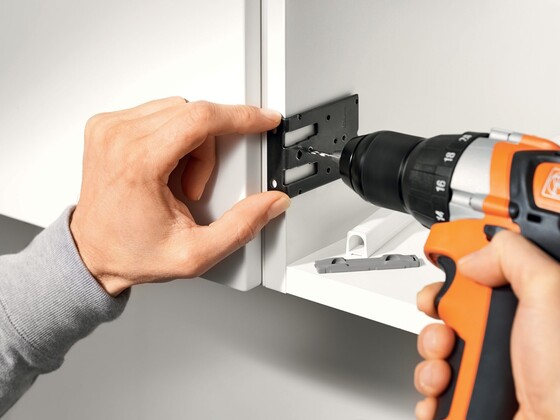

The mounting position is indicated on the lower part of the adapter plate. Or you can use the template for positioning.

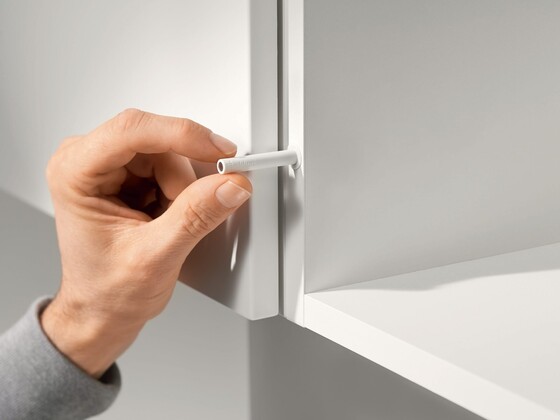

The arrow markings tell you in which direction to turn the ejector pin. One turn (= 4 click-stop positions) adjusts the door gap by 1 mm. The ejector pin cannot be turned beyond the pre-defined adjustment range so it always stays safely within the housing.
