REVEGO

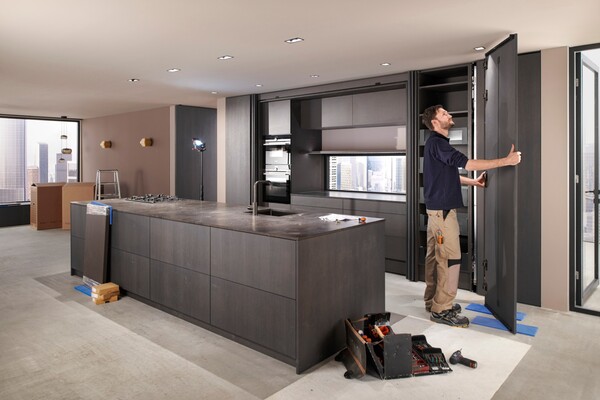

Pre-assembly enables easy installation on site
Thanks to the well-thought-out pocket construction, REVEGO can be pre-assembled in the workshop or plant. This allows for practical and well protected transportation to the end user. Our pocket systems can be fitted quickly and simply like any standard tall cabinet: put up, align and mount the pockets; install the doors and track; make any final adjustments – and that's it!
Assembly, adjustment and removal
Well-thought-out design
Pre-assembly of pockets and fronts enables quick and precise installation at customers' premises. This makes installation on site easier and increases efficiency.

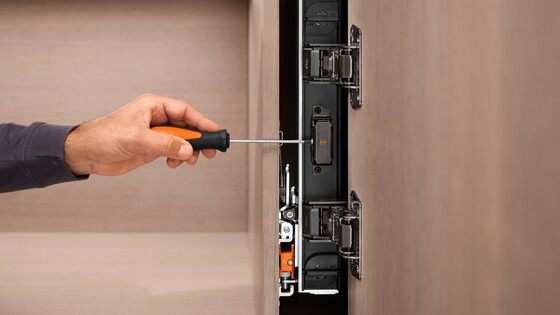

Easy adjustment
A perfect gap layout is achieved thanks to
precise 3-dimensional adjustment and the large adjustment range. Adjustment features are easily accessible and intuitive to use.
Simple removal
Thanks to REVEGO's integrated service interface, fittings can be easily removed and replaced from the assembled furniture/pocket.
Installation instructions
Assembly videos
REVEGO uno 2025 version – adjustments
This video shows how to perform the side, height, depth and tilt adjustments for REVEGO uno.
REVEGO uno 2025 version – removal
This video shows how to easily remove the front from REVEGO uno.
REVEGO uno 2025 version – final assembly
This video shows the on-site installation of REVEGO uno, including the pre-assembled pocket and prepared front.
REVEGO uno 2025 version – pre-installation preparation of the front
This video shows the pre-installation preparation of the REVEGO uno front, including the possible door support for REVEGO uno.
REVEGO uno 2025 version – pre-assembly of the pocket
This video shows the pre-assembly of the pocket for REVEGO uno.
REVEGO uno 2025 version – pre-assembly of the profiles
This video shows the processing of the pocket profiles, the TIP-ON unit pocket as well as the pocket cover strip for REVEGO uno.
REVEGO duo 2025 version – adjustments
This video shows how to perform the side, height, depth and tilt adjustments for REVEGO duo, including the depth adjustment for possible door supports.
REVEGO duo 2025 version – pre-installation preparation of the front
This video shows the pre-installation preparation of REVEGO duo fronts, including the possible door supports for REVEGO duo.
REVEGO duo 2025 version – removal
This video shows how to easily remove the fronts and the track of REVEGO duo.
REVEGO duo 2025 version – final assembly
This video shows the on-site installation of the REVEGO duo application, including the pre-assembled pocket, prepared front as well as track cover panel and fixed shelf.
REVEGO duo 2025 version – pre-installation preparation of the track cover panel and fixed shelf
This video shows the pre-installation preparation of the track cover panel and fixed shelf for REVEGO duo, REVEGO uno + duo as well as REVEGO duo + duo.
REVEGO duo 2025 version – pre-assembly of the pocket
This video shows the pre-assembly of the pocket for REVEGO duo.
REVEGO duo 2025 version – pre-assembly of the profiles
This video shows the processing of the pocket and roller profiles, the TIP-ON unit pocket, the pocket and door cover strip, and the track for REVEGO duo.
REVEGO duo + duo 2025 version – final assembly
This video shows the on-site installation of the combined REVEGO duo + duo application, including the pre-assembled pockets, prepared fronts as well as track cover panel and fixed shelf.
REVEGO uno + duo 2025 version – final assembly
This video shows the on-site installation of the REVEGO uno + duo, including the pre-assembled pockets, prepared fronts as well as track cover panel and fixed shelf.
