AVENTOS HKi
A well-thought-out assembly concept and integrated functions
A well-filled glass of sawdust is all you need to integrate AVENTOS HKi into the cabinet side. Choose for yourself how to blend our narrowest lift system seamlessly into the furniture from a variety of assembly options: depending on the equipment in your workshop, the number of fittings being used and whether or not you want to outsource any steps in the process.
Fully integrated with raw boards set
Our pre-milled MDF raw boards set already has the central cutout for AVENTOS HKi. Cut the raw board measuring 450 mm x 600 mm x 19 mm to your desired size and veneer or varnish the board according to your requirements.
We offer a special flush milling cutter for the router to re-expose the cutout after applying veneer.
Fully integrated with milling template set
Alongside the appropriate copy milling cutter, we have developed various milling templates with which you can precisely mill the cutout for the lift mechanism and insert panel when using a router.
Fully integrated with double shell
Use a CNC machine to surface mill the half cabinet sides and then glue the two halves together.
Fully integrated with double shell
Use a CNC machine to surface mill the half cabinet sides and then glue the two halves together.
Semi-integrated with cover cap
Use a CNC machine or router to surface mill your cabinet side for the lift mechanism. This is concealed in the furniture with a colour-coordinated cover cap. Customisation options are available with different branding elements.
Fully integrated with MINIMILL
We have developed MINIMILL, a special milling machine for manufacturing in larger quantities. It allows you to mill side panel thicknesses of 16 ‑ 25 mm quickly and precisely.
Adjust the cabinet side depth as required using the scale on the ruler.
Use a screwdriver to set the correct side panel thickness of 16 - 25 mm.
The cabinet side to be processed is pushed in up to the stop position.
Simple fixing of the cabinet sides with just one hand.
Then start the milling process securely with both hands
The outcome: perfectly milled cabinet sides that are ideal for further AVENTOS HKi processing.
Easy assembly and adjustment
Installation instructions
Assembly videos
AVENTOS HKi - assembly video

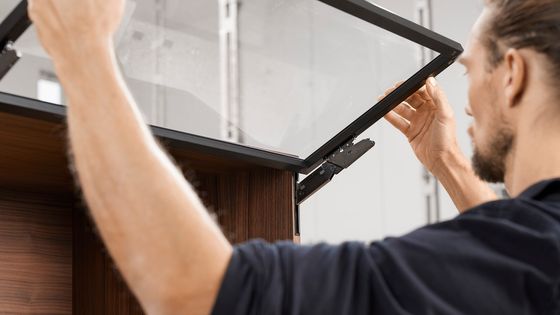

Shows the installation of the lift mechanism, transportation lock, front fixing bracket, lift mechanism adjustment, front adjustment, opening angle stop and removal of AVENTOS HKi
AVENTOS HKi - lift mechanism installation
Installation of the lift mechanism in the cabinet side
AVENTOS HKi - transportation lock
Shows how to release the transportation lock
AVENTOS HKi – lift mechanism adjustment
Adjust the lift mechanism precisely to the weight of the front and the front of the stay lift will stay exactly where you want it to - and it will always be within easy reach for closing.
AVENTOS HKi - front adjustment
Shows the infinitely variable 3-dimensional adjustment of the gap layout
AVENTOS HKi - opening angle stop
This video shows the adjustment of the integrated opening angle stop
AVENTOS HKi - removal
Shows how to remove the front and the lift mechanism
AVENTOS HKi - partial integration with cover caps
Shows how to fix the cover cap and the branding element for the semi-integrated application of AVENTOS HKi
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is simple and precise. Assembly must be precise to deliver perfect motion.
