CLIP top
Assembly made easy
CLIP top not only offers screw-on and knock-in boss options but also tool-free boss fixing with INSERTA. What’s more, tried and tested CLIP technology makes front assembly and removal quick and easy. And adjustment is simple and precise with Blum’s infinitely variable 3-dimensional adjustment feature.
Assembly, adjustment and removal
Tool-free hinge assembly
Hinge bosses can be seamlessly fixed to cabinet fronts with the tool-free INSERTA mechanism.

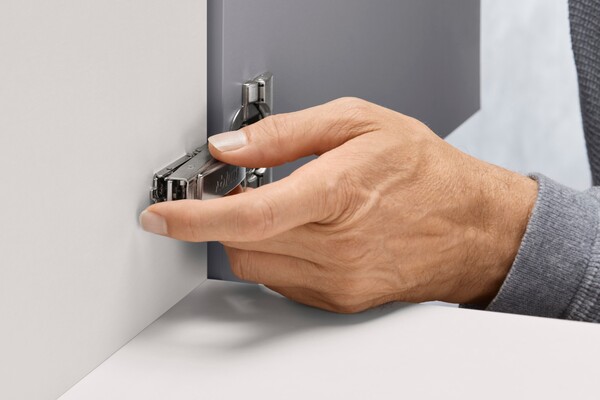

Tool-free front assembly
Blum’s tried and tested CLIP mechanism makes door to cabinet assembly tool free, quick and easy.
Three-dimensional adjustment
Triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw. What’s more, several mounting plates have cam height adjustment.
Assembly instructions
Assembly devices
Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
