SERVO-DRIVE for AVENTOS

The unbeatable lightness of opening (and closing)

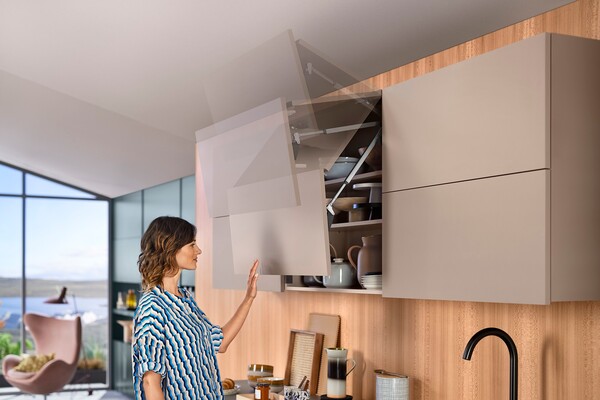

Thanks to SERVO-DRIVE for AVENTOS, wall cabinets glide open at a light touch. Even large and heavy fronts open with gravity-defying ease. And they close again just as conveniently at the press of a switch (within easy reach on the side of the cabinet). They close softly and effortlessly with soft-close BLUMOTION.

Product advantages

Easy access

Wall cabinets open up and out of the user's way, providing them with easy access to cabinet interiors.

Manual operation

The lift system can be opened or closed by hand at any time although an electrical motion support system is in place. This will not damage SERVO-DRIVE for AVENTOS in any way.

Collision prevention feature

SERVO-DRIVE for AVENTOS is completely safe. The opening and closing action are automatically stopped as soon as the front touches a part of the body or an object.

Deactivation

SERVO-DRIVE for AVENTOS can also be easily deactivated - preferably via a switched outlet. This is an advantage when, for example, cleaning fronts.

SERVO-DRIVE components

After assembling the AVENTOS lift system, simply attach the individual SERVO-DRIVE for AVENTOS components to the lift mechanism and cabinet.

SERVO-DRIVE switch

This switch is pressed into the pie cut drilling on both cabinet sides. The SERVO-DRIVE switch communicates wirelessly with the drive unit.

SERVO-DRIVE power supply unit & power supply unit housing

The SERVO-DRIVE power supply unit is supplied with a country-specific flex so it can be used all over the world. It converts the country-specific mains voltage to 24 V direct current. You must use a flex with a regular plug for the respective country depending on the installation location. The power supply unit housing ensures sufficient air circulation.

Blum distance bumpers

Blum distance bumpers provide the required trigger path of 2 mm.

Cabling

Cabling is completed in just a few steps. Thanks to piercing technology, cabling is very flexible. It can be easily adapted to individual space requirements.

Drive unit for AVENTOS HF top, HS top, HL top

The drive unit is clipped on the respective lift mechanism without tools. Colour signals guide you through the start-up and check that the lift mechanism and BLUMOTION settings are correct at the same time.

Drive unit for AVENTOS HK top

The drive unit is attached to the lift mechanism without tools. Colour signals guide you through the start-up step-by-step.

Drive unit for AVENTOS HF, HS and HL

The same drive unit can be used for AVENTOS HF, HS and HL. It is simply clipped onto the lift mechanism without tools.

Cover caps for SERVO-DRIVE

Cover cap for AVENTOS top

The same cover caps for AVENTOS HF top, HS top and HL top.

Cover cap for AVENTOS HK top

Due to the compact lift mechanism, a smaller cover cap is used for the AVENTOS HK top.

Cover cap for AVENTOS

The same cover caps for AVENTOS HF, HS and HL.
