AVENTOS FAQ
We hope this page will serve you as a quick reference for most questions around AVENTOS. If you would prefer to speak with us or ask these questions direct why not get in touch with the technical team.
Frequently asked questions: AVENTOS HK top

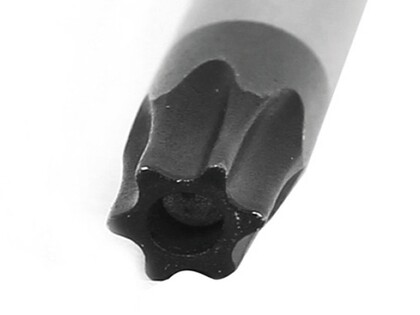

What screw driver do I need to adjust the opening angle stop?
You will need a TORX 20 screw driver.
How does the opening angle stop work?
On the arm you will find a Torx head which is the angle restrictor.
Please click here to see the installation video.
How does the safety release work?
On the arm you will see an orange tab which will release the safety switch.
PleaseClick here to see the installation video.
Frequently asked questions: AVENTOS HF
My centre hinges always pop out, how can I fix this?
The reason might be that there is a tension in the fronts or within the cabinet itself. It is best that you check the positioning of the lift mechanism as per the instructions and important that the length of the telescopic arms are correctly adjusted. In addition, check that the gapping between the two fronts is within our recommended tolerances.
Is there a formula I can use to calculate the access to various cabinets with AVENTOS HF?
Y max = (top) front height x 0.44 + 38 mm
If you want to reduce the minimum space requirement, you can install an opening angle restriction (104° or 83°). The space requirement changes accordingly:
104° Y max = (top) front height x 0.24 + 34 mm
83° no space requirement

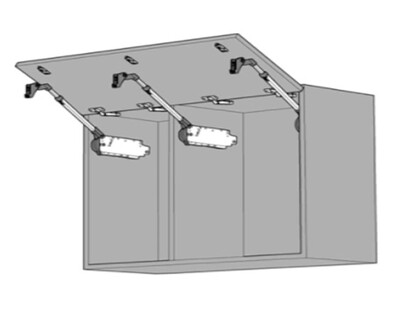

How can I fit a third mechanism?
For large cabinet widths with heavy wooden fronts you just mount an intermediate wall for a third mechanism to be installed.
Frequently asked questions: AVENTOS HS and HL
Can I restrict the opening angle?
No we don’t offer opening angle stops for HL or HS.
Inset application for HL. What is the maximum front thickness?
An inset application for AVENTOS HL is possible - please see the image below.
Also, add additional sides to each cabinet side inside the cabinet. The lift mechanism moves backwards (gap + front thickness). The maximal front thickness for the HL can be 26 mm, the minimum gap on the top and the bottom of the front is 2mm.
Can I use the HS stabiliser rod on HL?
The oval stabiliser from AVENTOS HL can NOT be used for AVENTOS HS.
The round stabiliser from AVENTOS HS can only be used for AVENTOS HS.
The reason is that the round stabiliser has less stability. For that reason it is not appropriate for AVENTOS HL.
